Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: creditCurve
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:CreditCurve
Containing Schema: fpml-mktenv-5-0.xsd
Abstract

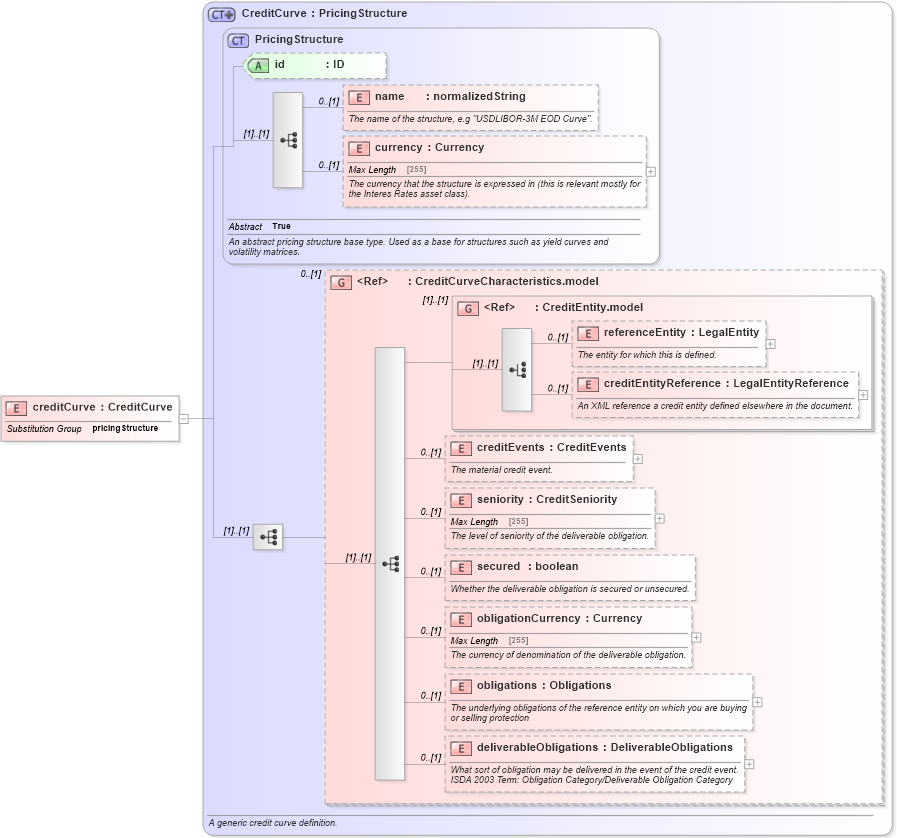

Collapse XSD Schema Diagram:
Drilldown into deliverableObligations in schema fpml-mktenv-5-0_xsd Drilldown into obligations in schema fpml-mktenv-5-0_xsd Drilldown into obligationCurrency in schema fpml-mktenv-5-0_xsd Drilldown into secured in schema fpml-mktenv-5-0_xsd Drilldown into seniority in schema fpml-mktenv-5-0_xsd Drilldown into creditEvents in schema fpml-mktenv-5-0_xsd Drilldown into creditEntityReference in schema fpml-asset-5-0_xsd1 Drilldown into referenceEntity in schema fpml-asset-5-0_xsd1 Drilldown into CreditEntity.model in schema fpml-asset-5-0_xsd1 Drilldown into CreditCurveCharacteristics.model in schema fpml-mktenv-5-0_xsd Drilldown into currency in schema fpml-shared-5-0_xsd1 Drilldown into name in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into PricingStructure in schema fpml-shared-5-0_xsd1 Drilldown into CreditCurve in schema fpml-mktenv-5-0_xsdXSD Diagram of creditCurve in schema fpml-mktenv-5-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="creditCurve" type="CreditCurve" substitutionGroup="pricingStructure" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsB:name 0 (1)
currency nsB:currency 0 (1)
referenceEntity nsB:referenceEntity 0 (1)
creditEntityReference nsB:creditEntityReference 0 (1)
creditEvents nsB:creditEvents 0 (1)
seniority nsB:seniority 0 (1)
secured nsB:secured 0 (1)
obligationCurrency nsB:obligationCurrency 0 (1)
obligations nsB:obligations 0 (1)
deliverableObligations nsB:deliverableObligations 0 (1)
<xs:group> nsB:CreditCurveCharacteristics.model 0 (1)
<xs:group> nsB:CreditEntity.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:pricingStructure
