Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquityDerivativeLongFormBase
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:EquityDerivativeBase
Containing Schema: fpml-eqd-5-0.xsd
Abstract True
Documentation:
type for defining the common features of equity derivatives.

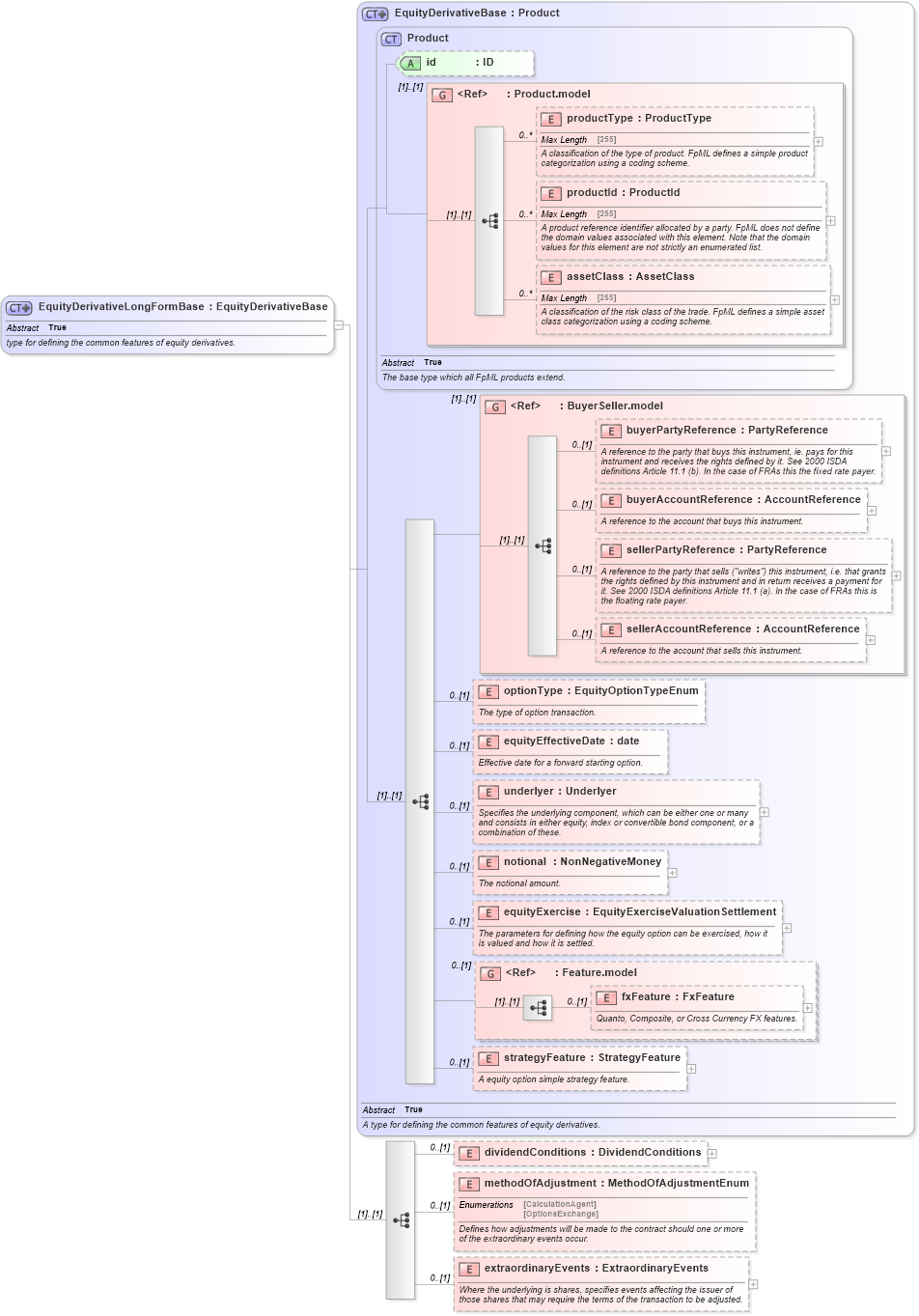

Collapse XSD Schema Diagram:
Drilldown into extraordinaryEvents in schema fpml-eqd-5-0_xsd1 Drilldown into methodOfAdjustment in schema fpml-eqd-5-0_xsd1 Drilldown into dividendConditions in schema fpml-eqd-5-0_xsd1 Drilldown into strategyFeature in schema fpml-eqd-5-0_xsd1 Drilldown into fxFeature in schema fpml-eq-shared-5-0_xsd1 Drilldown into Feature.model in schema fpml-eq-shared-5-0_xsd1 Drilldown into equityExercise in schema fpml-eqd-5-0_xsd1 Drilldown into notional in schema fpml-eqd-5-0_xsd1 Drilldown into underlyer in schema fpml-eqd-5-0_xsd1 Drilldown into equityEffectiveDate in schema fpml-eqd-5-0_xsd1 Drilldown into optionType in schema fpml-eqd-5-0_xsd1 Drilldown into sellerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into sellerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into buyerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into buyerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into BuyerSeller.model in schema fpml-shared-5-0_xsd1 Drilldown into assetClass in schema fpml-shared-5-0_xsd1 Drilldown into productId in schema fpml-shared-5-0_xsd1 Drilldown into productType in schema fpml-shared-5-0_xsd1 Drilldown into Product.model in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Product in schema fpml-shared-5-0_xsd1 Drilldown into EquityDerivativeBase in schema fpml-eqd-5-0_xsd1XSD Diagram of EquityDerivativeLongFormBase in schema fpml-eqd-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquityDerivativeLongFormBase" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">type for defining the common features of equity derivatives.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="EquityDerivativeBase">
            <xsd:sequence>
                <xsd:element name="dividendConditions" type="DividendConditions" minOccurs="0" />
                <xsd:element name="methodOfAdjustment" type="MethodOfAdjustmentEnum" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines how adjustments will be made to the contract should one or more of the extraordinary events occur.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="extraordinaryEvents" type="ExtraordinaryEvents" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType nsB:productType 0 unbounded
productId nsB:productId 0 unbounded
assetClass nsB:assetClass 0 unbounded
buyerPartyReference nsB:buyerPartyReference 0 (1)
buyerAccountReference nsB:buyerAccountReference 0 (1)
sellerPartyReference nsB:sellerPartyReference 0 (1)
sellerAccountReference nsB:sellerAccountReference 0 (1)
optionType nsB:optionType 0 (1)
equityEffectiveDate nsB:equityEffectiveDate 0 (1)
underlyer nsB:underlyer 0 (1)
notional nsB:notional 0 (1)
equityExercise nsB:equityExercise 0 (1)
fxFeature nsB:fxFeature 0 (1)
strategyFeature nsB:strategyFeature 0 (1)
dividendConditions nsB:dividendConditions 0 (1)
methodOfAdjustment nsB:methodOfAdjustment 0 (1)
extraordinaryEvents nsB:extraordinaryEvents 0 (1)
<xs:group> nsB:BuyerSeller.model (1) (1)
<xs:group> nsB:Feature.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:EquityForward, nsB:EquityOption
