Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquitySwapTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:ReturnSwapBase
Containing Schema: fpml-return-swaps-5-0.xsd
Abstract
Documentation:
A type for defining Equity Swap Transaction Supplement

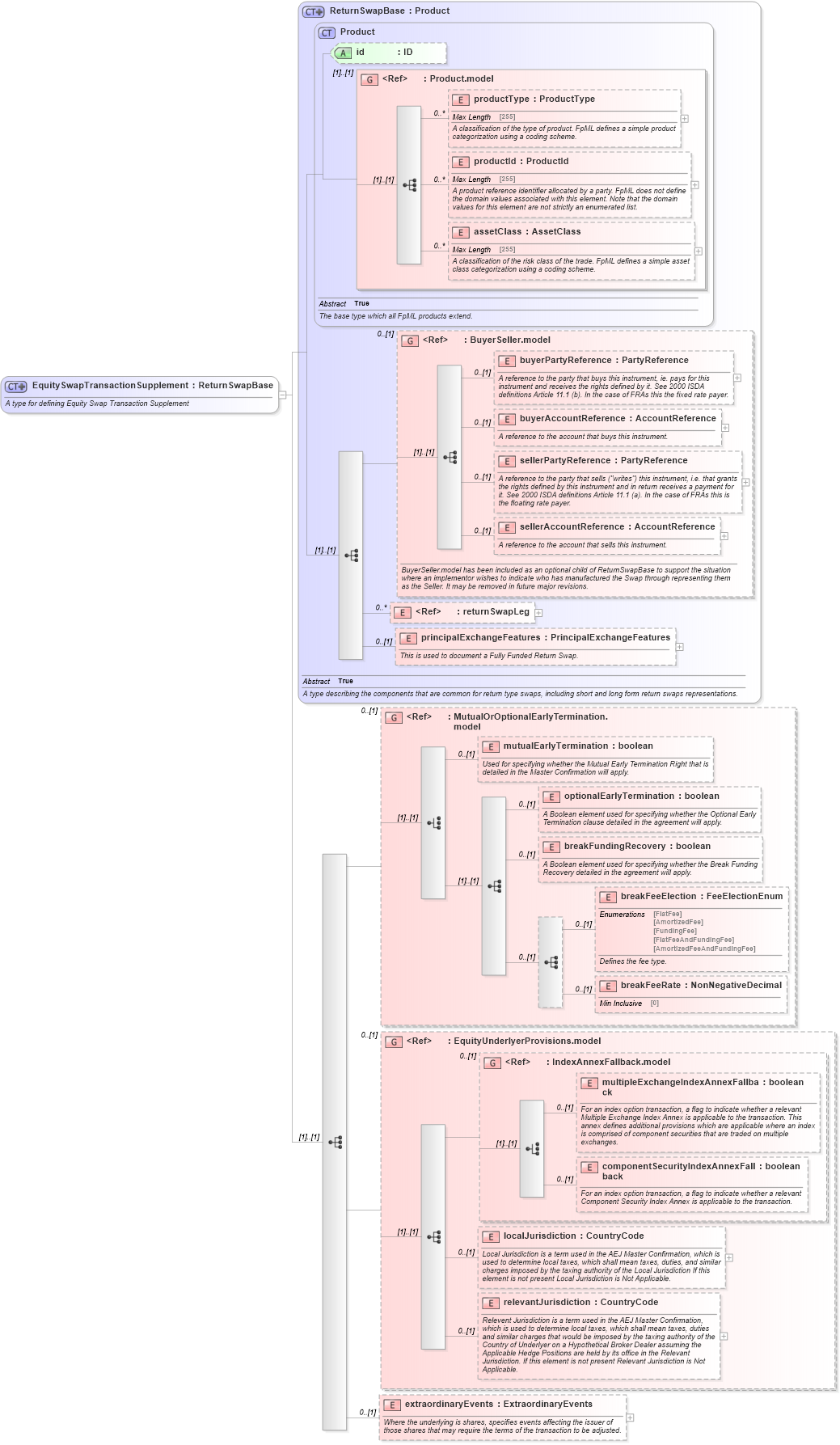

Collapse XSD Schema Diagram:
Drilldown into extraordinaryEvents in schema fpml-return-swaps-5-0_xsd1 Drilldown into relevantJurisdiction in schema fpml-eq-shared-5-0_xsd1 Drilldown into localJurisdiction in schema fpml-eq-shared-5-0_xsd1 Drilldown into componentSecurityIndexAnnexFallback in schema fpml-eq-shared-5-0_xsd1 Drilldown into multipleExchangeIndexAnnexFallback in schema fpml-eq-shared-5-0_xsd1 Drilldown into IndexAnnexFallback.model in schema fpml-eq-shared-5-0_xsd1 Drilldown into EquityUnderlyerProvisions.model in schema fpml-eq-shared-5-0_xsd1 Drilldown into breakFeeRate in schema fpml-eq-shared-5-0_xsd1 Drilldown into breakFeeElection in schema fpml-eq-shared-5-0_xsd1 Drilldown into breakFundingRecovery in schema fpml-eq-shared-5-0_xsd1 Drilldown into optionalEarlyTermination in schema fpml-eq-shared-5-0_xsd1 Drilldown into mutualEarlyTermination in schema fpml-eq-shared-5-0_xsd1 Drilldown into MutualOrOptionalEarlyTermination.model in schema fpml-eq-shared-5-0_xsd1 Drilldown into principalExchangeFeatures in schema fpml-eq-shared-5-0_xsd1 Drilldown into returnSwapLeg in schema fpml-eq-shared-5-0_xsd1 Drilldown into sellerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into sellerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into buyerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into buyerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into BuyerSeller.model in schema fpml-shared-5-0_xsd1 Drilldown into assetClass in schema fpml-shared-5-0_xsd1 Drilldown into productId in schema fpml-shared-5-0_xsd1 Drilldown into productType in schema fpml-shared-5-0_xsd1 Drilldown into Product.model in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Product in schema fpml-shared-5-0_xsd1 Drilldown into ReturnSwapBase in schema fpml-eq-shared-5-0_xsd1XSD Diagram of EquitySwapTransactionSupplement in schema fpml-return-swaps-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquitySwapTransactionSupplement">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining Equity Swap Transaction Supplement</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ReturnSwapBase">
            <xsd:sequence>
                <xsd:group ref="MutualOrOptionalEarlyTermination.model" minOccurs="0" />
                <xsd:group ref="EquityUnderlyerProvisions.model" minOccurs="0" />
                <xsd:element name="extraordinaryEvents" type="ExtraordinaryEvents" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType nsB:productType 0 unbounded
productId nsB:productId 0 unbounded
assetClass nsB:assetClass 0 unbounded
buyerPartyReference nsB:buyerPartyReference 0 (1)
buyerAccountReference nsB:buyerAccountReference 0 (1)
sellerPartyReference nsB:sellerPartyReference 0 (1)
sellerAccountReference nsB:sellerAccountReference 0 (1)
returnSwapLeg nsB:returnSwapLeg 0 unbounded
principalExchangeFeatures nsB:principalExchangeFeatures 0 (1)
mutualEarlyTermination nsB:mutualEarlyTermination 0 (1)
optionalEarlyTermination nsB:optionalEarlyTermination 0 (1)
breakFundingRecovery nsB:breakFundingRecovery 0 (1)
breakFeeElection nsB:breakFeeElection 0 (1)
breakFeeRate nsB:breakFeeRate 0 (1)
multipleExchangeIndexAnnexFallback nsB:multipleExchangeIndexAnnexFallback 0 (1)
componentSecurityIndexAnnexFallback nsB:componentSecurityIndexAnnexFallback 0 (1)
localJurisdiction nsB:localJurisdiction 0 (1)
relevantJurisdiction nsB:relevantJurisdiction 0 (1)
extraordinaryEvents nsB:extraordinaryEvents 0 (1)
<xs:group> nsB:BuyerSeller.model 0 (1)
<xs:group> nsB:MutualOrOptionalEarlyTermination.model 0 (1)
<xs:group> nsB:EquityUnderlyerProvisions.model 0 (1)
<xs:group> nsB:IndexAnnexFallback.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:equitySwapTransactionSupplement
