Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FloatingPriceLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:Leg
Containing Schema: fpml-com-5-0.xsd
Abstract
Documentation:
Floating Price Leg of a Commodity Swap.

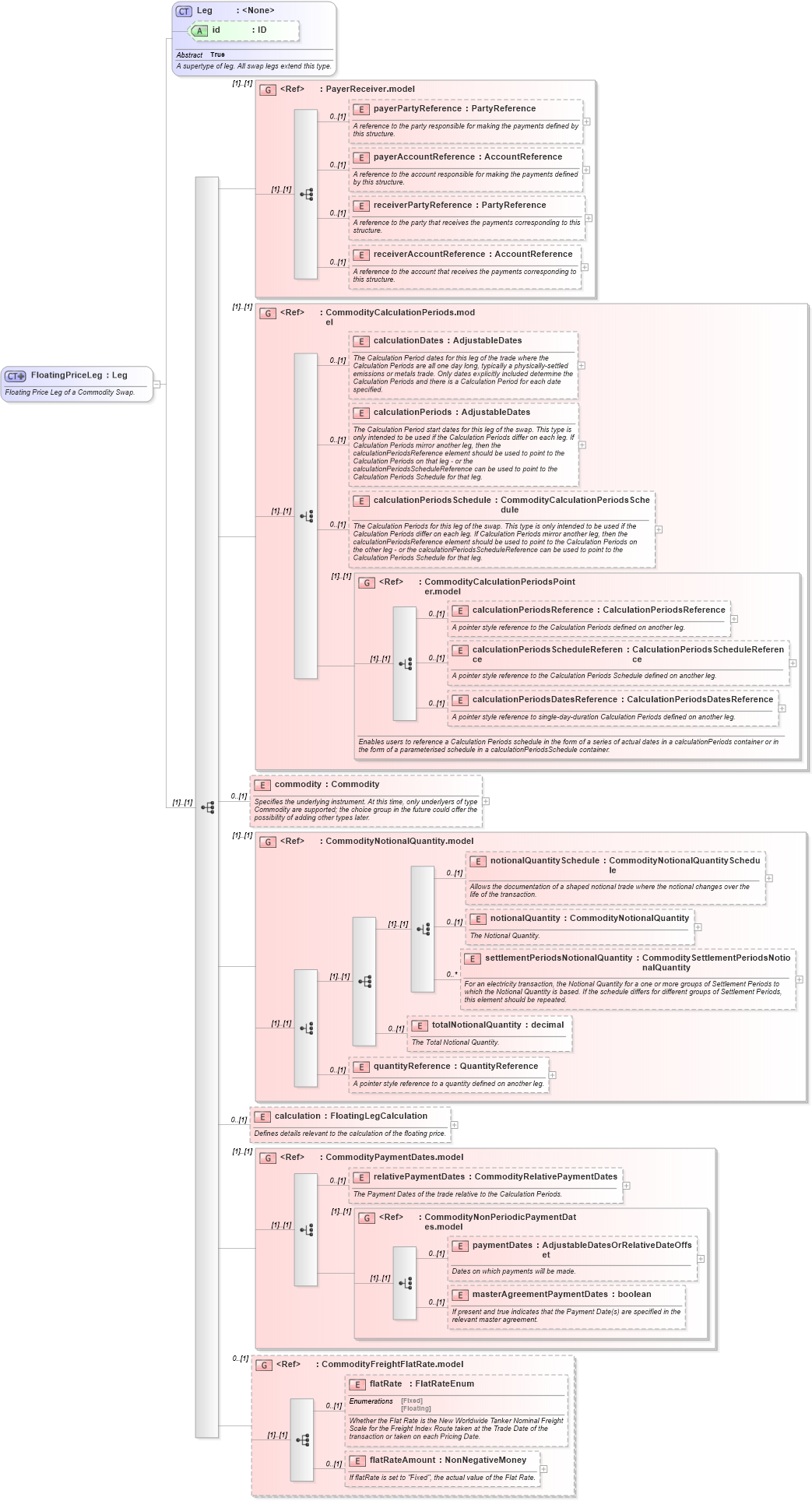

Collapse XSD Schema Diagram:
Drilldown into flatRateAmount in schema fpml-com-5-0_xsd1 Drilldown into flatRate in schema fpml-com-5-0_xsd1 Drilldown into CommodityFreightFlatRate.model in schema fpml-com-5-0_xsd1 Drilldown into masterAgreementPaymentDates in schema fpml-com-5-0_xsd1 Drilldown into paymentDates in schema fpml-com-5-0_xsd1 Drilldown into CommodityNonPeriodicPaymentDates.model in schema fpml-com-5-0_xsd1 Drilldown into relativePaymentDates in schema fpml-com-5-0_xsd1 Drilldown into CommodityPaymentDates.model in schema fpml-com-5-0_xsd1 Drilldown into calculation in schema fpml-com-5-0_xsd1 Drilldown into quantityReference in schema fpml-com-5-0_xsd1 Drilldown into totalNotionalQuantity in schema fpml-com-5-0_xsd1 Drilldown into settlementPeriodsNotionalQuantity in schema fpml-com-5-0_xsd1 Drilldown into notionalQuantity in schema fpml-com-5-0_xsd1 Drilldown into notionalQuantitySchedule in schema fpml-com-5-0_xsd1 Drilldown into CommodityNotionalQuantity.model in schema fpml-com-5-0_xsd1 Drilldown into commodity in schema fpml-com-5-0_xsd1 Drilldown into calculationPeriodsDatesReference in schema fpml-com-5-0_xsd1 Drilldown into calculationPeriodsScheduleReference in schema fpml-com-5-0_xsd1 Drilldown into calculationPeriodsReference in schema fpml-com-5-0_xsd1 Drilldown into CommodityCalculationPeriodsPointer.model in schema fpml-com-5-0_xsd1 Drilldown into calculationPeriodsSchedule in schema fpml-com-5-0_xsd1 Drilldown into calculationPeriods in schema fpml-com-5-0_xsd1 Drilldown into calculationDates in schema fpml-com-5-0_xsd1 Drilldown into CommodityCalculationPeriods.model in schema fpml-com-5-0_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into receiverPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into payerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into payerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into PayerReceiver.model in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Leg in schema fpml-shared-5-0_xsd1XSD Diagram of FloatingPriceLeg in schema fpml-com-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FloatingPriceLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Floating Price Leg of a Commodity Swap.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Leg">
            <xsd:sequence>
                <xsd:group ref="PayerReceiver.model" />
                <xsd:group ref="CommodityCalculationPeriods.model" />
                <xsd:element name="commodity" type="Commodity" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Specifies the underlying instrument. At this time, only underlyers of type Commodity are supported; the choice group in the future could offer the possibility of adding other types later.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="CommodityNotionalQuantity.model" />
                <xsd:element name="calculation" type="FloatingLegCalculation" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines details relevant to the calculation of the floating price.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="CommodityPaymentDates.model" />
                <xsd:group ref="CommodityFreightFlatRate.model" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsB:payerPartyReference 0 (1)
payerAccountReference nsB:payerAccountReference 0 (1)
receiverPartyReference nsB:receiverPartyReference 0 (1)
receiverAccountReference nsB:receiverAccountReference 0 (1)
calculationDates nsB:calculationDates 0 (1)
calculationPeriods nsB:calculationPeriods 0 (1)
calculationPeriodsSchedule nsB:calculationPeriodsSchedule 0 (1)
calculationPeriodsReference nsB:calculationPeriodsReference 0 (1)
calculationPeriodsScheduleReference nsB:calculationPeriodsScheduleReference 0 (1)
calculationPeriodsDatesReference nsB:calculationPeriodsDatesReference 0 (1)
commodity nsB:commodity 0 (1)
notionalQuantitySchedule nsB:notionalQuantitySchedule 0 (1)
notionalQuantity nsB:notionalQuantity 0 (1)
settlementPeriodsNotionalQuantity nsB:settlementPeriodsNotionalQuantity 0 unbounded
totalNotionalQuantity nsB:totalNotionalQuantity 0 (1)
quantityReference nsB:quantityReference 0 (1)
calculation nsB:calculation 0 (1)
relativePaymentDates nsB:relativePaymentDates 0 (1)
paymentDates nsB:paymentDates 0 (1)
masterAgreementPaymentDates nsB:masterAgreementPaymentDates 0 (1)
flatRate nsB:flatRate 0 (1)
flatRateAmount nsB:flatRateAmount 0 (1)
<xs:group> nsB:PayerReceiver.model (1) (1)
<xs:group> nsB:CommodityCalculationPeriods.model (1) (1)
<xs:group> nsB:CommodityCalculationPeriodsPointer.model (1) (1)
<xs:group> nsB:CommodityNotionalQuantity.model (1) (1)
<xs:group> nsB:CommodityPaymentDates.model (1) (1)
<xs:group> nsB:CommodityNonPeriodicPaymentDates.model (1) (1)
<xs:group> nsB:CommodityFreightFlatRate.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:floatingLeg
