Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: GasPhysicalLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:PhysicalLeg
Containing Schema: fpml-com-5-0.xsd
Abstract
Documentation:
Physically settled leg of a physically settled gas transaction.

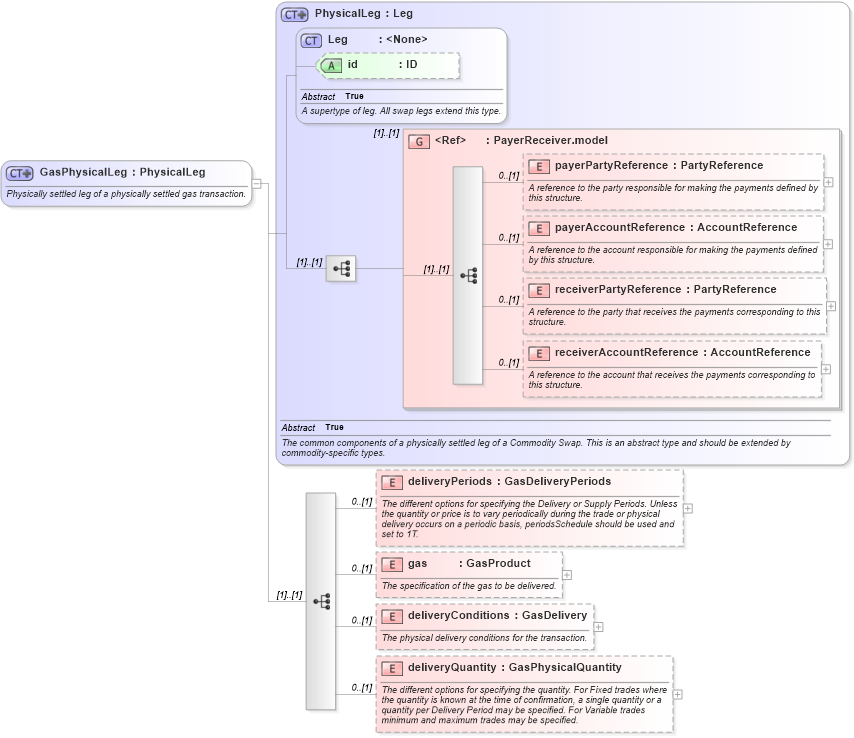

Collapse XSD Schema Diagram:
Drilldown into deliveryQuantity in schema fpml-com-5-0_xsd1 Drilldown into deliveryConditions in schema fpml-com-5-0_xsd1 Drilldown into gas in schema fpml-com-5-0_xsd1 Drilldown into deliveryPeriods in schema fpml-com-5-0_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into receiverPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into payerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into payerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into PayerReceiver.model in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Leg in schema fpml-shared-5-0_xsd1 Drilldown into PhysicalLeg in schema fpml-com-5-0_xsd1XSD Diagram of GasPhysicalLeg in schema fpml-com-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="GasPhysicalLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Physically settled leg of a physically settled gas transaction.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="PhysicalLeg">
            <xsd:sequence>
                <xsd:element name="deliveryPeriods" type="GasDeliveryPeriods" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The different options for specifying the Delivery or Supply Periods. Unless the quantity or price is to vary periodically during the trade or physical delivery occurs on a periodic basis, periodsSchedule should be used and set to 1T.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="gas" type="GasProduct" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The specification of the gas to be delivered.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="deliveryConditions" type="GasDelivery" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The physical delivery conditions for the transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="deliveryQuantity" type="GasPhysicalQuantity" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The different options for specifying the quantity. For Fixed trades where the quantity is known at the time of confirmation, a single quantity or a quantity per Delivery Period may be specified. For Variable trades minimum and maximum trades may be specified.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsB:payerPartyReference 0 (1)
payerAccountReference nsB:payerAccountReference 0 (1)
receiverPartyReference nsB:receiverPartyReference 0 (1)
receiverAccountReference nsB:receiverAccountReference 0 (1)
deliveryPeriods nsB:deliveryPeriods 0 (1)
gas nsB:gas 0 (1)
deliveryConditions nsB:deliveryConditions 0 (1)
deliveryQuantity nsB:deliveryQuantity 0 (1)
<xs:group> nsB:PayerReceiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:gasPhysicalLeg
