Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: otherPartyPayment
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:Payment
Containing Schema: fpml-doc-5-0.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Other fees or additional payments associated with the trade, e.g. broker commissions, where one or more of the parties involved are not principal parties involved in the trade.
Collapse XSD Schema Diagram:

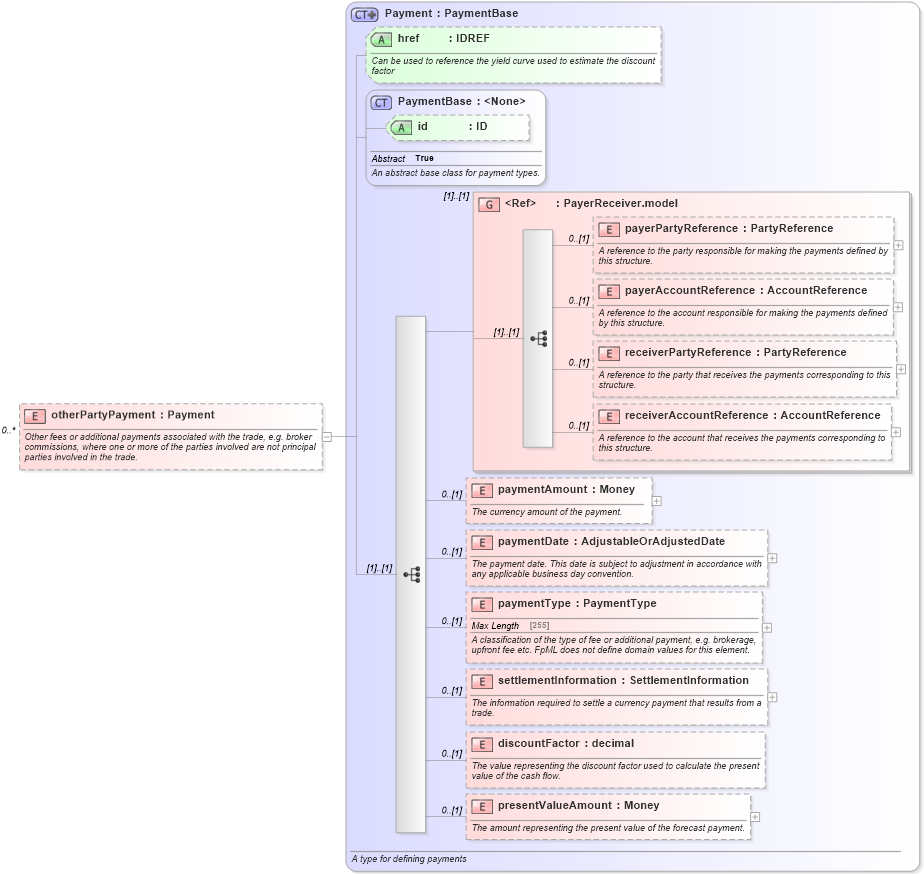

Drilldown into presentValueAmount in schema fpml-shared-5-0_xsd1 Drilldown into discountFactor in schema fpml-shared-5-0_xsd1 Drilldown into settlementInformation in schema fpml-shared-5-0_xsd1 Drilldown into paymentType in schema fpml-shared-5-0_xsd1 Drilldown into paymentDate in schema fpml-shared-5-0_xsd1 Drilldown into paymentAmount in schema fpml-shared-5-0_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into receiverPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into payerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into payerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into PayerReceiver.model in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into PaymentBase in schema fpml-shared-5-0_xsd1 Drilldown into href in schema fpml-shared-5-0_xsd1 Drilldown into Payment in schema fpml-shared-5-0_xsd1XSD Diagram of otherPartyPayment in schema fpml-doc-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="otherPartyPayment" type="Payment" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Other fees or additional payments associated with the trade, e.g. broker commissions, where one or more of the parties involved are not principal parties involved in the trade.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsB:payerPartyReference 0 (1)
payerAccountReference nsB:payerAccountReference 0 (1)
receiverPartyReference nsB:receiverPartyReference 0 (1)
receiverAccountReference nsB:receiverAccountReference 0 (1)
paymentAmount nsB:paymentAmount 0 (1)
paymentDate nsB:paymentDate 0 (1)
paymentType nsB:paymentType 0 (1)
settlementInformation nsB:settlementInformation 0 (1)
discountFactor nsB:discountFactor 0 (1)
presentValueAmount nsB:presentValueAmount 0 (1)
<xs:group> nsB:PayerReceiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
href nsB:href (Optional)
Collapse Derivation Tree:
