Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: payment
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:Payment
Containing Schema: fpml-business-events-5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Describes a payment made in settlement of the change.

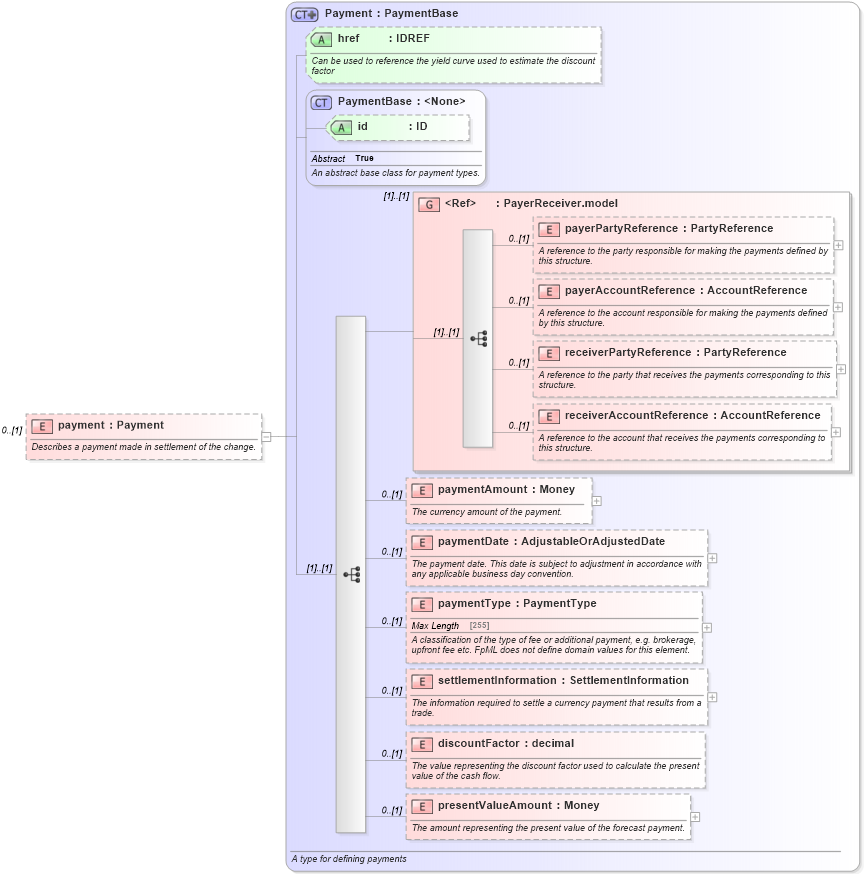

Collapse XSD Schema Diagram:
Drilldown into presentValueAmount in schema fpml-shared-5-0_xsd1 Drilldown into discountFactor in schema fpml-shared-5-0_xsd1 Drilldown into settlementInformation in schema fpml-shared-5-0_xsd1 Drilldown into paymentType in schema fpml-shared-5-0_xsd1 Drilldown into paymentDate in schema fpml-shared-5-0_xsd1 Drilldown into paymentAmount in schema fpml-shared-5-0_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into receiverPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into payerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into payerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into PayerReceiver.model in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into PaymentBase in schema fpml-shared-5-0_xsd1 Drilldown into href in schema fpml-shared-5-0_xsd1 Drilldown into Payment in schema fpml-shared-5-0_xsd1XSD Diagram of payment in schema fpml-business-events-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="payment" type="Payment" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Describes a payment made in settlement of the change.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsB:payerPartyReference 0 (1)
payerAccountReference nsB:payerAccountReference 0 (1)
receiverPartyReference nsB:receiverPartyReference 0 (1)
receiverAccountReference nsB:receiverAccountReference 0 (1)
paymentAmount nsB:paymentAmount 0 (1)
paymentDate nsB:paymentDate 0 (1)
paymentType nsB:paymentType 0 (1)
settlementInformation nsB:settlementInformation 0 (1)
discountFactor nsB:discountFactor 0 (1)
presentValueAmount nsB:presentValueAmount 0 (1)
<xs:group> nsB:PayerReceiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
href nsB:href (Optional)
Collapse Derivation Tree:
