Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: physicalQuantity
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:ElectricityPhysicalDeliveryQuantity
Containing Schema: fpml-com-5-0.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The Quantity per Delivery Period.

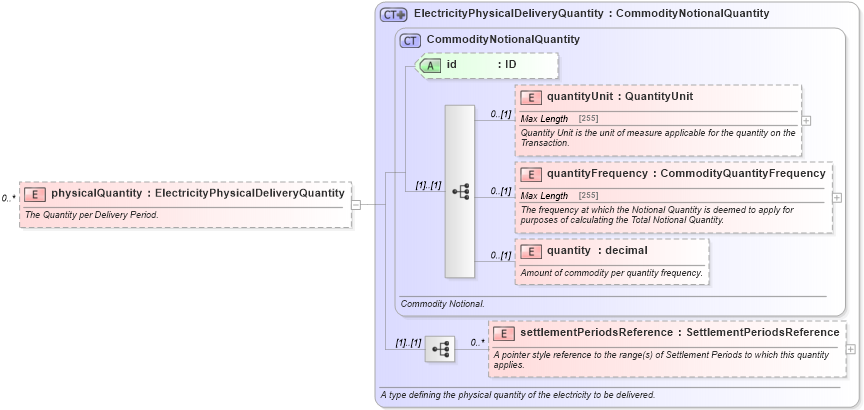

Collapse XSD Schema Diagram:
Drilldown into settlementPeriodsReference in schema fpml-com-5-0_xsd1 Drilldown into quantity in schema fpml-com-5-0_xsd1 Drilldown into quantityFrequency in schema fpml-com-5-0_xsd1 Drilldown into quantityUnit in schema fpml-com-5-0_xsd1 Drilldown into id in schema fpml-com-5-0_xsd1 Drilldown into CommodityNotionalQuantity in schema fpml-com-5-0_xsd1 Drilldown into ElectricityPhysicalDeliveryQuantity in schema fpml-com-5-0_xsd1XSD Diagram of physicalQuantity in schema fpml-com-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="physicalQuantity" type="ElectricityPhysicalDeliveryQuantity" maxOccurs="unbounded" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The Quantity per Delivery Period.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quantityUnit nsB:quantityUnit 0 (1)
quantityFrequency nsB:quantityFrequency 0 (1)
quantity nsB:quantity 0 (1)
settlementPeriodsReference nsB:settlementPeriodsReference 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
