Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PositionReference
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-reconciliation-5-0.xsd
Abstract
Documentation:
A type that allows referencing a position by ID and version.

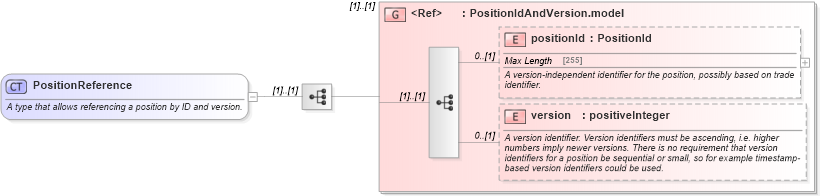

Collapse XSD Schema Diagram:
Drilldown into version in schema fpml-riskdef-5-0_xsd Drilldown into positionId in schema fpml-riskdef-5-0_xsd Drilldown into PositionIdAndVersion.model in schema fpml-riskdef-5-0_xsdXSD Diagram of PositionReference in schema fpml-reconciliation-5-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PositionReference">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that allows referencing a position by ID and version.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="PositionIdAndVersion.model" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
positionId nsB:positionId 0 (1)
version nsB:version 0 (1)
<xs:group> nsB:PositionIdAndVersion.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsB:definedPosition, nsB:forceMatch, nsB:removedPosition, nsB:removePosition
