Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriods
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:SettlementPeriods
Containing Schema: fpml-com-5-0.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

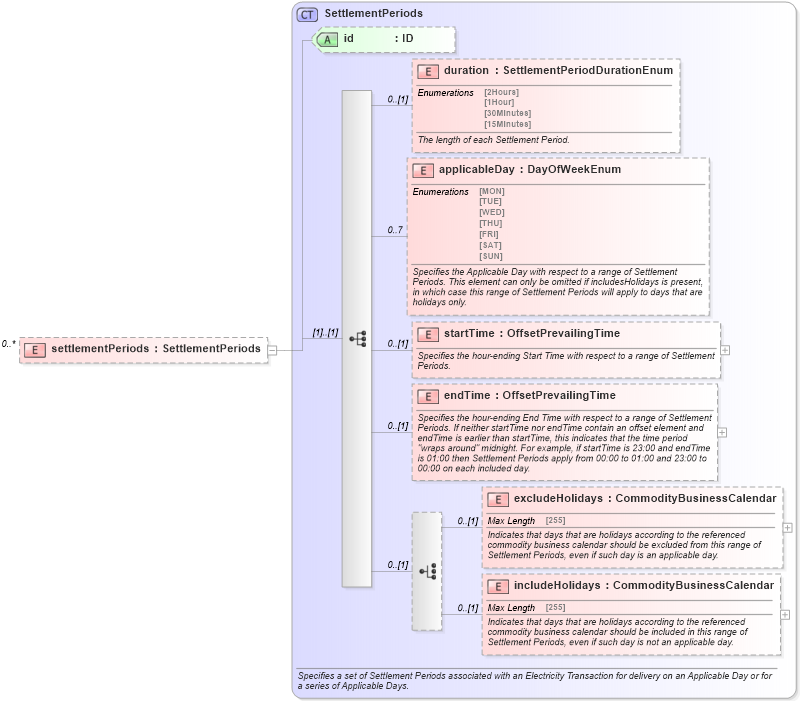

Collapse XSD Schema Diagram:
Drilldown into includeHolidays in schema fpml-com-5-0_xsd1 Drilldown into excludeHolidays in schema fpml-com-5-0_xsd1 Drilldown into endTime in schema fpml-com-5-0_xsd1 Drilldown into startTime in schema fpml-com-5-0_xsd1 Drilldown into applicableDay in schema fpml-com-5-0_xsd1 Drilldown into duration in schema fpml-com-5-0_xsd1 Drilldown into id in schema fpml-com-5-0_xsd1 Drilldown into SettlementPeriods in schema fpml-com-5-0_xsd1XSD Diagram of settlementPeriods in schema fpml-com-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriods" type="SettlementPeriods" maxOccurs="unbounded" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
duration nsB:duration 0 (1)
applicableDay nsB:applicableDay 0 7
startTime nsB:startTime 0 (1)
endTime nsB:endTime 0 (1)
excludeHolidays nsB:excludeHolidays 0 (1)
includeHolidays nsB:includeHolidays 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
