Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: termination
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:TradeNotionalChange
Containing Schema: fpml-business-events-5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

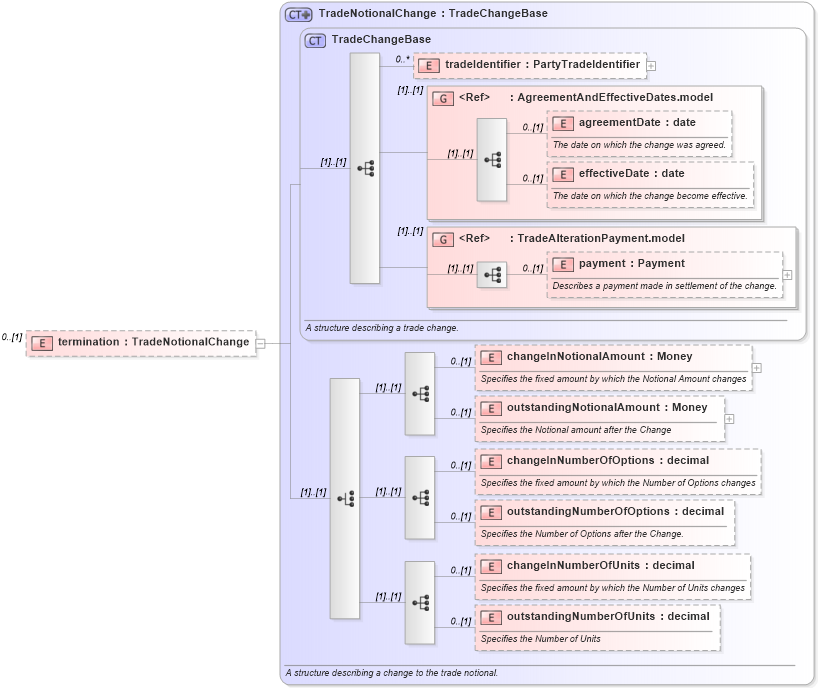

Collapse XSD Schema Diagram:
Drilldown into outstandingNumberOfUnits in schema fpml-business-events-5-0_xsd1 Drilldown into changeInNumberOfUnits in schema fpml-business-events-5-0_xsd1 Drilldown into outstandingNumberOfOptions in schema fpml-business-events-5-0_xsd1 Drilldown into changeInNumberOfOptions in schema fpml-business-events-5-0_xsd1 Drilldown into outstandingNotionalAmount in schema fpml-business-events-5-0_xsd1 Drilldown into changeInNotionalAmount in schema fpml-business-events-5-0_xsd1 Drilldown into payment in schema fpml-business-events-5-0_xsd1 Drilldown into TradeAlterationPayment.model in schema fpml-business-events-5-0_xsd1 Drilldown into effectiveDate in schema fpml-business-events-5-0_xsd1 Drilldown into agreementDate in schema fpml-business-events-5-0_xsd1 Drilldown into AgreementAndEffectiveDates.model in schema fpml-business-events-5-0_xsd1 Drilldown into tradeIdentifier in schema fpml-business-events-5-0_xsd1 Drilldown into TradeChangeBase in schema fpml-business-events-5-0_xsd1 Drilldown into TradeNotionalChange in schema fpml-business-events-5-0_xsd1XSD Diagram of termination in schema fpml-business-events-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="termination" type="TradeNotionalChange" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tradeIdentifier nsB:tradeIdentifier 0 unbounded
agreementDate nsB:agreementDate 0 (1)
effectiveDate nsB:effectiveDate 0 (1)
payment nsB:payment 0 (1)
changeInNotionalAmount nsB:changeInNotionalAmount 0 (1)
outstandingNotionalAmount nsB:outstandingNotionalAmount 0 (1)
changeInNumberOfOptions nsB:changeInNumberOfOptions 0 (1)
outstandingNumberOfOptions nsB:outstandingNumberOfOptions 0 (1)
changeInNumberOfUnits nsB:changeInNumberOfUnits 0 (1)
outstandingNumberOfUnits nsB:outstandingNumberOfUnits 0 (1)
<xs:group> nsB:AgreementAndEffectiveDates.model (1) (1)
<xs:group> nsB:TradeAlterationPayment.model (1) (1)
Collapse Derivation Tree:
