Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: varianceLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:VarianceLeg
Containing Schema: fpml-variance-swaps-5-0.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Variance Leg.

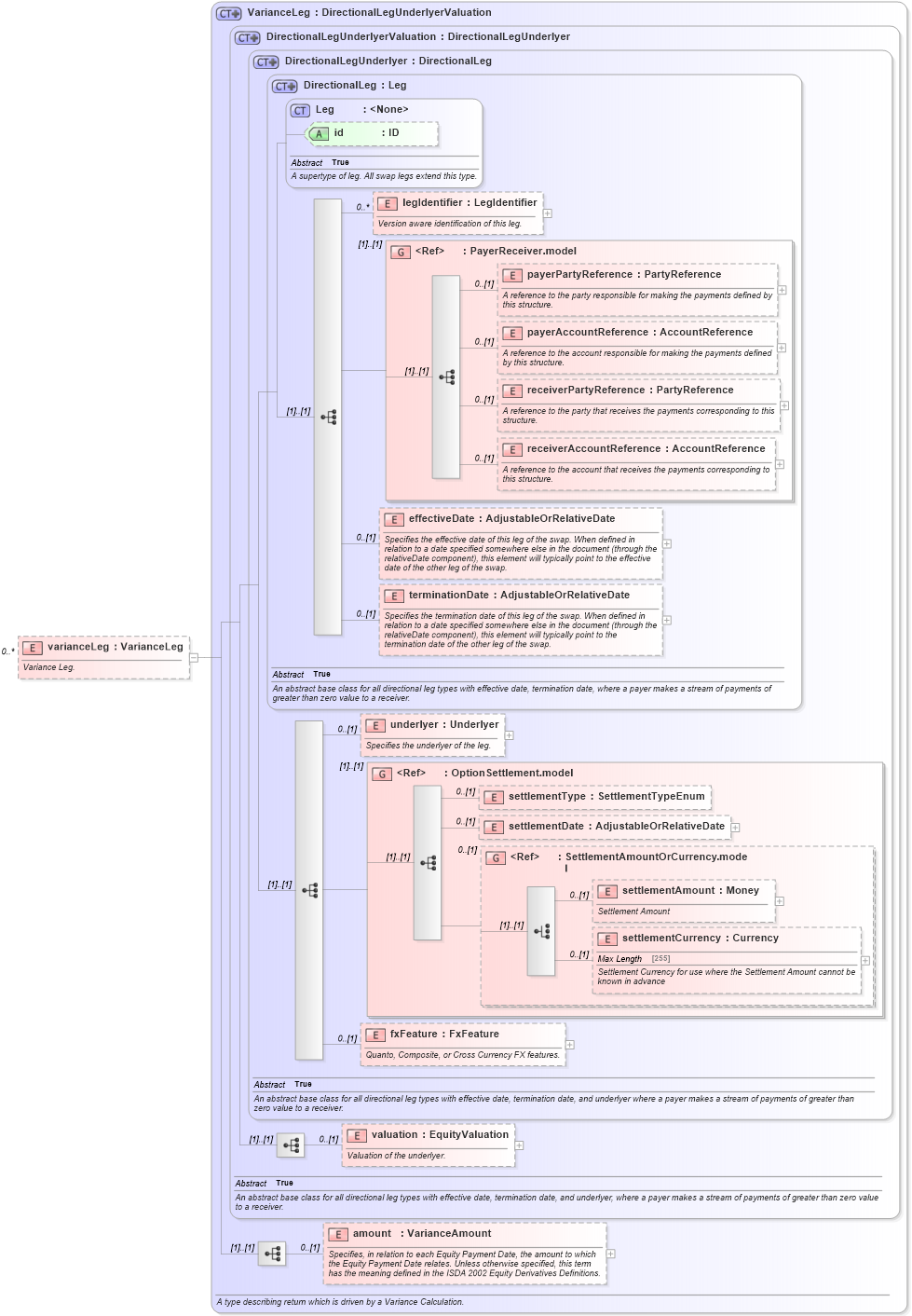

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-variance-swaps-5-0_xsd1 Drilldown into valuation in schema fpml-eq-shared-5-0_xsd1 Drilldown into fxFeature in schema fpml-eq-shared-5-0_xsd1 Drilldown into settlementCurrency in schema fpml-shared-5-0_xsd1 Drilldown into settlementAmount in schema fpml-shared-5-0_xsd1 Drilldown into SettlementAmountOrCurrency.model in schema fpml-shared-5-0_xsd1 Drilldown into settlementDate in schema fpml-option-shared-5-0_xsd1 Drilldown into settlementType in schema fpml-option-shared-5-0_xsd1 Drilldown into OptionSettlement.model in schema fpml-option-shared-5-0_xsd1 Drilldown into underlyer in schema fpml-eq-shared-5-0_xsd1 Drilldown into terminationDate in schema fpml-eq-shared-5-0_xsd1 Drilldown into effectiveDate in schema fpml-eq-shared-5-0_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into receiverPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into payerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into payerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into PayerReceiver.model in schema fpml-shared-5-0_xsd1 Drilldown into legIdentifier in schema fpml-eq-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Leg in schema fpml-shared-5-0_xsd1 Drilldown into DirectionalLeg in schema fpml-eq-shared-5-0_xsd1 Drilldown into DirectionalLegUnderlyer in schema fpml-eq-shared-5-0_xsd1 Drilldown into DirectionalLegUnderlyerValuation in schema fpml-eq-shared-5-0_xsd1 Drilldown into VarianceLeg in schema fpml-variance-swaps-5-0_xsd1XSD Diagram of varianceLeg in schema fpml-variance-swaps-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="varianceLeg" type="VarianceLeg" maxOccurs="unbounded" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Variance Leg.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
legIdentifier nsB:legIdentifier 0 unbounded
payerPartyReference nsB:payerPartyReference 0 (1)
payerAccountReference nsB:payerAccountReference 0 (1)
receiverPartyReference nsB:receiverPartyReference 0 (1)
receiverAccountReference nsB:receiverAccountReference 0 (1)
effectiveDate nsB:effectiveDate 0 (1)
terminationDate nsB:terminationDate 0 (1)
underlyer nsB:underlyer 0 (1)
settlementType nsB:settlementType 0 (1)
settlementDate nsB:settlementDate 0 (1)
settlementAmount nsB:settlementAmount 0 (1)
settlementCurrency nsB:settlementCurrency 0 (1)
fxFeature nsB:fxFeature 0 (1)
valuation nsB:valuation 0 (1)
amount nsB:amount 0 (1)
<xs:group> nsB:PayerReceiver.model (1) (1)
<xs:group> nsB:OptionSettlement.model (1) (1)
<xs:group> nsB:SettlementAmountOrCurrency.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Documentation for Financial products Markup Language (FpML®)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
