Definition Type: Element
Name: accrualRegion
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxAccrualRegion
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Defines the regions of the spot rate where fixings generate an accumulation of notional.

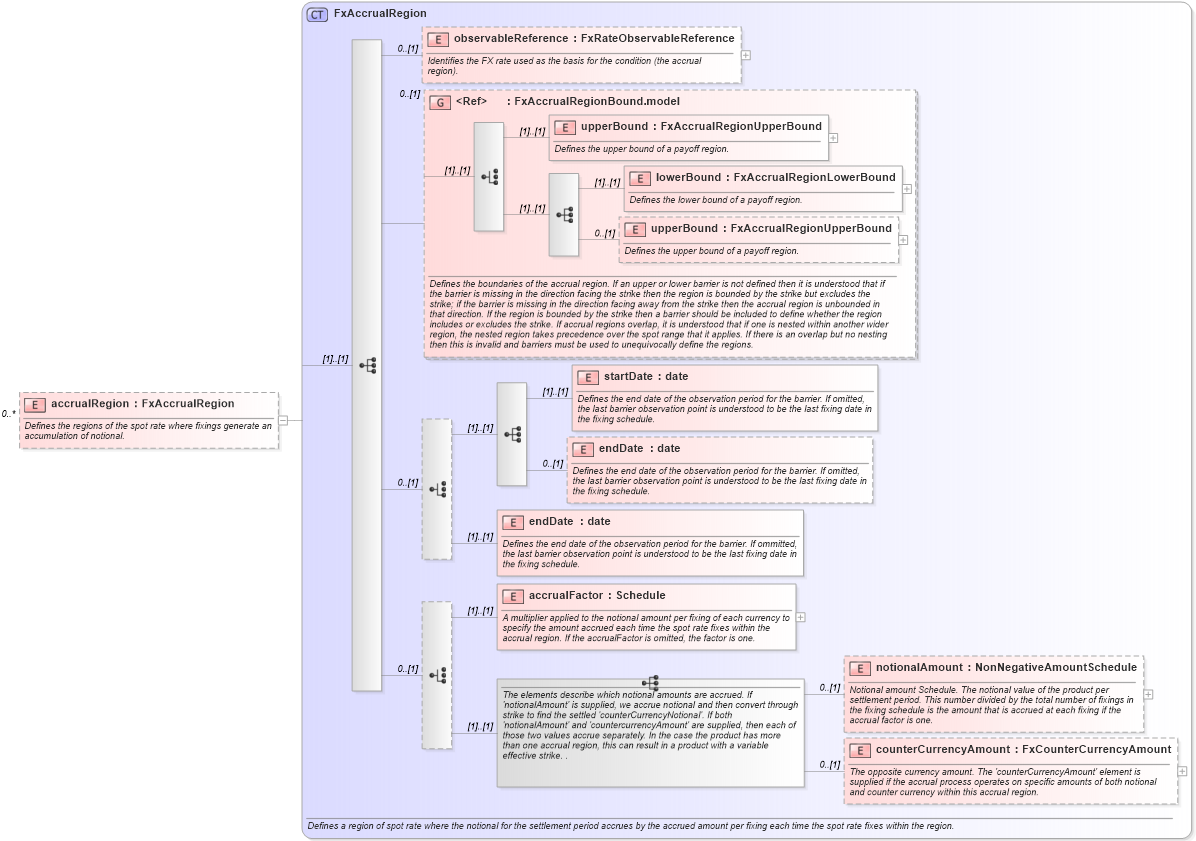

Collapse XSD Schema Diagram:
Drilldown into counterCurrencyAmount in schema fpml-fx-accruals-5-10_xsd2 Drilldown into notionalAmount in schema fpml-fx-accruals-5-10_xsd2 Drilldown into accrualFactor in schema fpml-fx-accruals-5-10_xsd2 Drilldown into endDate in schema fpml-fx-accruals-5-10_xsd2 Drilldown into endDate in schema fpml-fx-accruals-5-10_xsd2 Drilldown into startDate in schema fpml-fx-accruals-5-10_xsd2 Drilldown into upperBound in schema fpml-fx-accruals-5-10_xsd2 Drilldown into lowerBound in schema fpml-fx-accruals-5-10_xsd2 Drilldown into upperBound in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxAccrualRegionBound.model in schema fpml-fx-accruals-5-10_xsd2 Drilldown into observableReference in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxAccrualRegion in schema fpml-fx-accruals-5-10_xsd2XSD Diagram of accrualRegion in schema fpml-fx-accruals-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="accrualRegion" type="FxAccrualRegion" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the regions of the spot rate where fixings generate an accumulation of notional.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observableReference nsE:observableReference 0 (1)
upperBound nsE:upperBound (1) (1)
lowerBound nsE:lowerBound (1) (1)
upperBound nsE:upperBound 0 (1)
startDate nsE:startDate (1) (1)
endDate nsE:endDate 0 (1)
endDate nsE:endDate (1) (1)
accrualFactor nsE:accrualFactor (1) (1)
notionalAmount nsE:notionalAmount 0 (1)
counterCurrencyAmount nsE:counterCurrencyAmount 0 (1)
<xs:group> nsE:FxAccrualRegionBound.model 0 (1)
Collapse Derivation Tree:
