Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: AccruingFeeOption
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FeeRateOptionBase
Containing Schema: fpml-loan-5-10.xsd
Abstract
Documentation:
A structure that represents the accruing fee option associated within a facility.

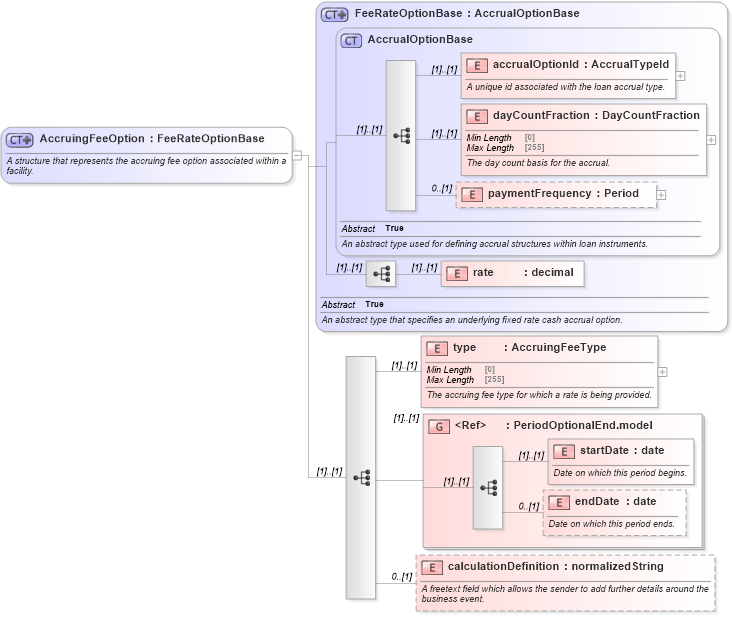

Collapse XSD Schema Diagram:
Drilldown into calculationDefinition in schema fpml-loan-5-10_xsd Drilldown into endDate in schema fpml-loan-5-10_xsd Drilldown into startDate in schema fpml-loan-5-10_xsd Drilldown into PeriodOptionalEnd.model in schema fpml-loan-5-10_xsd Drilldown into type in schema fpml-loan-5-10_xsd Drilldown into rate in schema fpml-loan-5-10_xsd Drilldown into paymentFrequency in schema fpml-loan-5-10_xsd Drilldown into dayCountFraction in schema fpml-loan-5-10_xsd Drilldown into accrualOptionId in schema fpml-loan-5-10_xsd Drilldown into AccrualOptionBase in schema fpml-loan-5-10_xsd Drilldown into FeeRateOptionBase in schema fpml-loan-5-10_xsdXSD Diagram of AccruingFeeOption in schema fpml-loan-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="AccruingFeeOption">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structure that represents the accruing fee option associated within a facility.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FeeRateOptionBase">
            <xsd:sequence>
                <xsd:element name="type" type="AccruingFeeType">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The accruing fee type for which a rate is being provided.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="PeriodOptionalEnd.model" />
                <xsd:element name="calculationDefinition" type="xsd:normalizedString" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A freetext field which allows the sender to add further details around the business event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
accrualOptionId nsA:accrualOptionId (1) (1)
dayCountFraction nsA:dayCountFraction (1) (1)
paymentFrequency nsA:paymentFrequency 0 (1)
rate nsA:rate (1) (1)
type nsA:type (1) (1)
startDate nsA:startDate (1) (1)
endDate nsA:endDate 0 (1)
calculationDefinition nsA:calculationDefinition 0 (1)
<xs:group> nsA:PeriodOptionalEnd.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:accruingFeeOption, nsA:accruingFeeOption
