Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: accumulationRegion
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxTargetAccumulationRegion
Containing Schema: fpml-fx-targets-5-10.xsd
MinOccurs (1)
MaxOccurs 2
Abstract

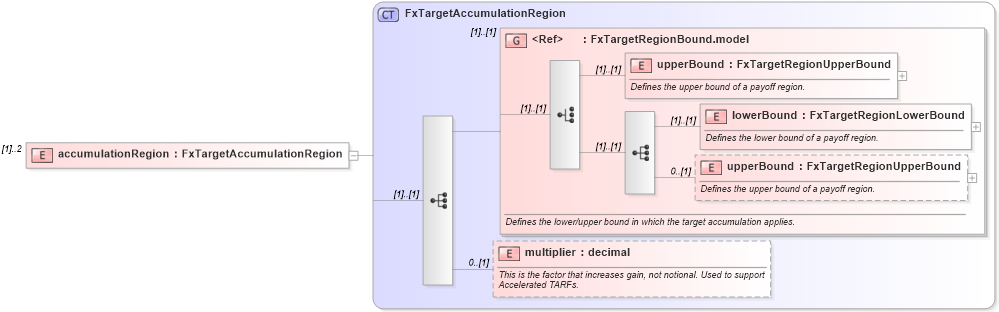

Collapse XSD Schema Diagram:
Drilldown into multiplier in schema fpml-fx-targets-5-10_xsd Drilldown into upperBound in schema fpml-fx-targets-5-10_xsd Drilldown into lowerBound in schema fpml-fx-targets-5-10_xsd Drilldown into upperBound in schema fpml-fx-targets-5-10_xsd Drilldown into FxTargetRegionBound.model in schema fpml-fx-targets-5-10_xsd Drilldown into FxTargetAccumulationRegion in schema fpml-fx-targets-5-10_xsdXSD Diagram of accumulationRegion in schema fpml-fx-targets-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="accumulationRegion" type="FxTargetAccumulationRegion" maxOccurs="2" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
upperBound nsA:upperBound (1) (1)
lowerBound nsA:lowerBound (1) (1)
upperBound nsA:upperBound 0 (1)
multiplier nsA:multiplier 0 (1)
<xs:group> nsA:FxTargetRegionBound.model (1) (1)
Collapse Derivation Tree:
