Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ActionOnExpiration
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-business-events-5-10.xsd
Abstract

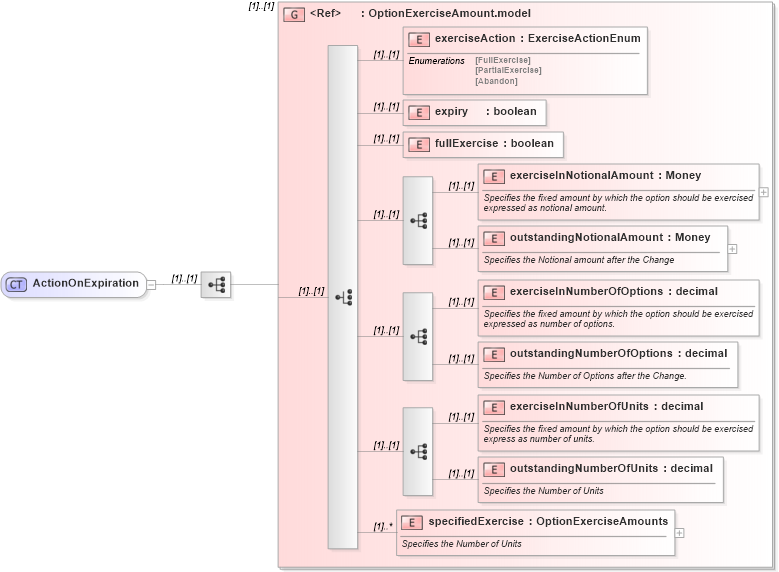

Collapse XSD Schema Diagram:
Drilldown into specifiedExercise in schema fpml-business-events-5-10_xsd Drilldown into outstandingNumberOfUnits in schema fpml-business-events-5-10_xsd Drilldown into exerciseInNumberOfUnits in schema fpml-business-events-5-10_xsd Drilldown into outstandingNumberOfOptions in schema fpml-business-events-5-10_xsd Drilldown into exerciseInNumberOfOptions in schema fpml-business-events-5-10_xsd Drilldown into outstandingNotionalAmount in schema fpml-business-events-5-10_xsd Drilldown into exerciseInNotionalAmount in schema fpml-business-events-5-10_xsd Drilldown into fullExercise in schema fpml-business-events-5-10_xsd Drilldown into expiry in schema fpml-business-events-5-10_xsd Drilldown into exerciseAction in schema fpml-business-events-5-10_xsd Drilldown into OptionExerciseAmount.model in schema fpml-business-events-5-10_xsdXSD Diagram of ActionOnExpiration in schema fpml-business-events-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ActionOnExpiration">
    <xsd:sequence>
        <xsd:group ref="OptionExerciseAmount.model" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exerciseAction nsA:exerciseAction (1) (1)
expiry nsA:expiry (1) (1)
fullExercise nsA:fullExercise (1) (1)
exerciseInNotionalAmount nsA:exerciseInNotionalAmount (1) (1)
outstandingNotionalAmount nsA:outstandingNotionalAmount (1) (1)
exerciseInNumberOfOptions nsA:exerciseInNumberOfOptions (1) (1)
outstandingNumberOfOptions nsA:outstandingNumberOfOptions (1) (1)
exerciseInNumberOfUnits nsA:exerciseInNumberOfUnits (1) (1)
outstandingNumberOfUnits nsA:outstandingNumberOfUnits (1) (1)
specifiedExercise nsA:specifiedExercise (1) unbounded
<xs:group> nsA:OptionExerciseAmount.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:actionOnExpiration
