<xsd:complexType name="AdditionalData">
<xsd:annotation>
<xsd:documentation xml:lang="en">Provides extra information not represented in the model that may be useful in processing the message i.e. diagnosing the reason for failure.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="mimeType" type="MimeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">Indicates the type of media used to provide the extra information. mimeType is used to determine the software product(s) that can read the content. MIME Types are described in RFC 2046.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:choice minOccurs="0">
<xsd:element name="string" type="String">
<xsd:annotation>
<xsd:documentation xml:lang="en">Provides extra information as string. In case the extra information is in XML format, a CDATA section must be placed around the source message to prevent its interpretation as XML content.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="hexadecimalBinary" type="xsd:hexBinary">
<xsd:annotation>
<xsd:documentation xml:lang="en">Provides extra information as binary contents coded in hexadecimal.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="base64Binary" type="xsd:base64Binary">
<xsd:annotation>
<xsd:documentation xml:lang="en">Provides extra information as binary contents coded in base64.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="originalMessage">
<xsd:annotation>
<xsd:documentation xml:lang="en">Provides extra information as binary contents coded in base64.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:any processContents="skip" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:choice>
</xsd:sequence>
</xsd:complexType>
|

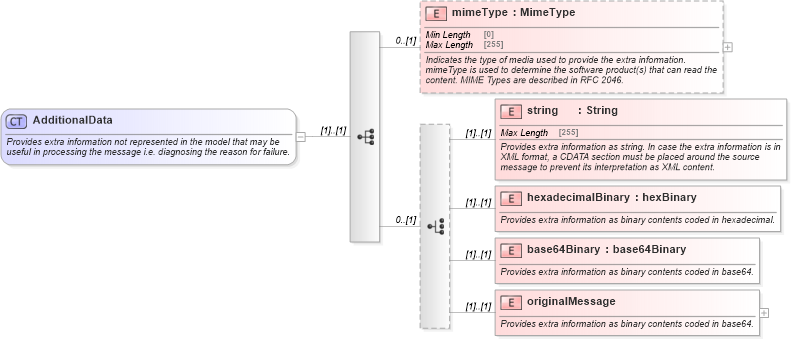

XSD Schema Diagram:
