Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: AgreedAmount
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-collateral-processes-5-10.xsd
Abstract

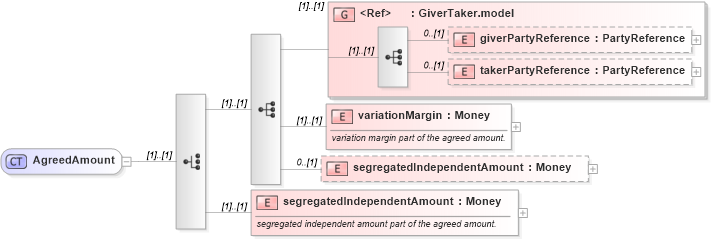

Collapse XSD Schema Diagram:
Drilldown into segregatedIndependentAmount in schema fpml-collateral-processes-5-10_xsd Drilldown into segregatedIndependentAmount in schema fpml-collateral-processes-5-10_xsd Drilldown into variationMargin in schema fpml-collateral-processes-5-10_xsd Drilldown into takerPartyReference in schema fpml-collateral-processes-5-10_xsd Drilldown into giverPartyReference in schema fpml-collateral-processes-5-10_xsd Drilldown into GiverTaker.model in schema fpml-collateral-processes-5-10_xsdXSD Diagram of AgreedAmount in schema fpml-collateral-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="AgreedAmount">
    <xsd:choice>
        <xsd:sequence>
            <xsd:group ref="GiverTaker.model" />
            <xsd:element name="variationMargin" type="Money">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">variation margin part of the agreed amount.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="segregatedIndependentAmount" type="Money" minOccurs="0" />
        </xsd:sequence>
        <xsd:element name="segregatedIndependentAmount" type="Money">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">segregated independent amount part of the agreed amount.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
giverPartyReference nsE:giverPartyReference 0 (1)
takerPartyReference nsE:takerPartyReference 0 (1)
variationMargin nsE:variationMargin (1) (1)
segregatedIndependentAmount nsE:segregatedIndependentAmount 0 (1)
segregatedIndependentAmount nsE:segregatedIndependentAmount (1) (1)
<xs:group> nsE:GiverTaker.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsE:agreedAmount, nsE:agreedAmount
