Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: allocation
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Allocation
Containing Schema: fpml-doc-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

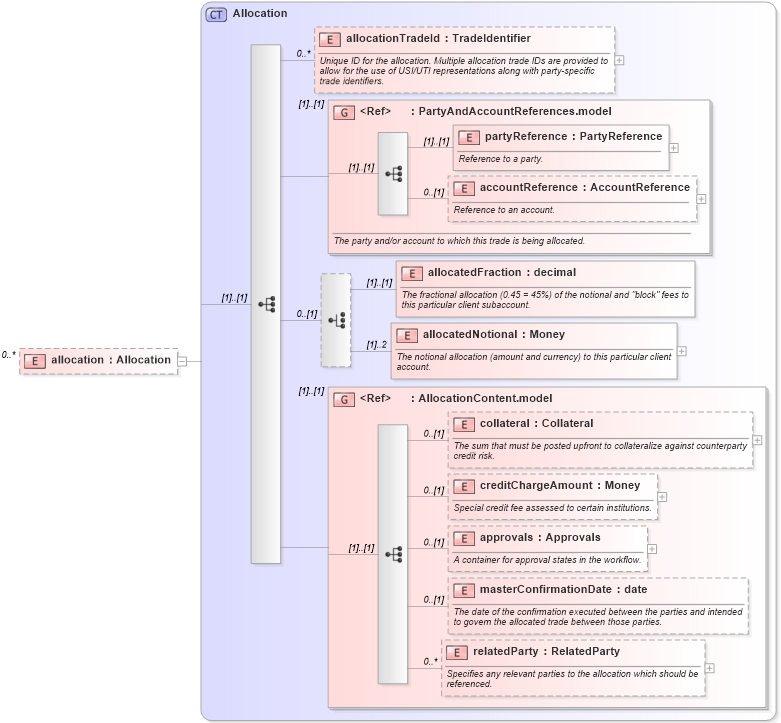

Collapse XSD Schema Diagram:
Drilldown into relatedParty in schema fpml-doc-5-10_xsd3 Drilldown into masterConfirmationDate in schema fpml-doc-5-10_xsd3 Drilldown into approvals in schema fpml-doc-5-10_xsd3 Drilldown into creditChargeAmount in schema fpml-doc-5-10_xsd3 Drilldown into collateral in schema fpml-doc-5-10_xsd3 Drilldown into AllocationContent.model in schema fpml-doc-5-10_xsd3 Drilldown into allocatedNotional in schema fpml-doc-5-10_xsd3 Drilldown into allocatedFraction in schema fpml-doc-5-10_xsd3 Drilldown into accountReference in schema fpml-shared-5-10_xsd3 Drilldown into partyReference in schema fpml-shared-5-10_xsd3 Drilldown into PartyAndAccountReferences.model in schema fpml-shared-5-10_xsd3 Drilldown into allocationTradeId in schema fpml-doc-5-10_xsd3 Drilldown into Allocation in schema fpml-doc-5-10_xsd3XSD Diagram of allocation in schema fpml-doc-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="allocation" type="Allocation" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
allocationTradeId nsD:allocationTradeId 0 unbounded
partyReference nsD:partyReference (1) (1)
accountReference nsD:accountReference 0 (1)
allocatedFraction nsD:allocatedFraction (1) (1)
allocatedNotional nsD:allocatedNotional (1) 2
collateral nsD:collateral 0 (1)
creditChargeAmount nsD:creditChargeAmount 0 (1)
approvals nsD:approvals 0 (1)
masterConfirmationDate nsD:masterConfirmationDate 0 (1)
relatedParty nsD:relatedParty 0 unbounded
<xs:group> nsD:PartyAndAccountReferences.model (1) (1)
<xs:group> nsD:AllocationContent.model (1) (1)
Collapse Derivation Tree:
