Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: americanExercise
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:CommodityAmericanExercise
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the exercise period for an American style option together with the rules governing the quantity of the commodity that can be exercised on any given exercise date.

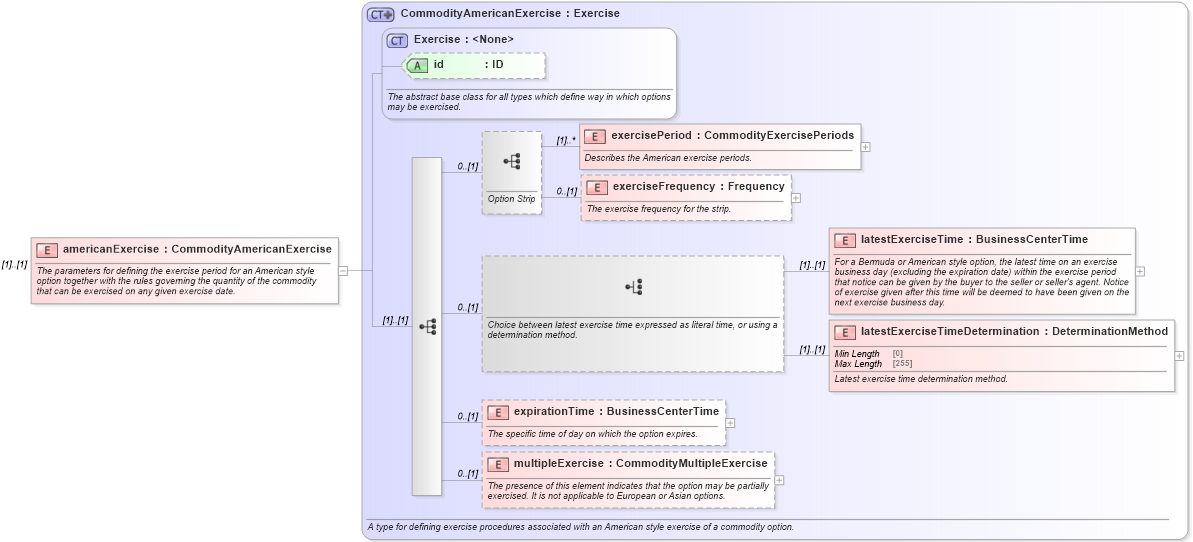

Collapse XSD Schema Diagram:
Drilldown into multipleExercise in schema fpml-com-5-10_xsd1 Drilldown into expirationTime in schema fpml-com-5-10_xsd1 Drilldown into latestExerciseTimeDetermination in schema fpml-com-5-10_xsd1 Drilldown into latestExerciseTime in schema fpml-com-5-10_xsd1 Drilldown into exerciseFrequency in schema fpml-com-5-10_xsd1 Drilldown into exercisePeriod in schema fpml-com-5-10_xsd1 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Exercise in schema fpml-shared-5-10_xsd3 Drilldown into CommodityAmericanExercise in schema fpml-com-5-10_xsd1XSD Diagram of americanExercise in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="americanExercise" type="CommodityAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the exercise period for an American style option together with the rules governing the quantity of the commodity that can be exercised on any given exercise date.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exercisePeriod nsD:exercisePeriod (1) unbounded
exerciseFrequency nsD:exerciseFrequency 0 (1)
latestExerciseTime nsD:latestExerciseTime (1) (1)
latestExerciseTimeDetermination nsD:latestExerciseTimeDetermination (1) (1)
expirationTime nsD:expirationTime 0 (1)
multipleExercise nsD:multipleExercise 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
