Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: americanExercise
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CommodityAmericanExercise
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the expiration date for an American option.

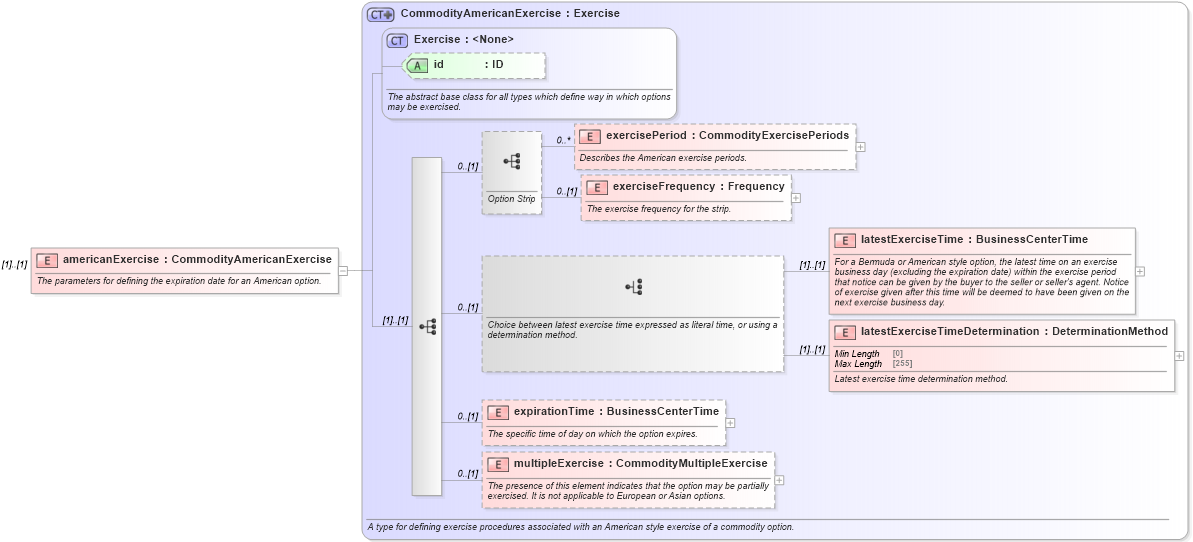

Collapse XSD Schema Diagram:
Drilldown into multipleExercise in schema fpml-com-5-10_xsd2 Drilldown into expirationTime in schema fpml-com-5-10_xsd2 Drilldown into latestExerciseTimeDetermination in schema fpml-com-5-10_xsd2 Drilldown into latestExerciseTime in schema fpml-com-5-10_xsd2 Drilldown into exerciseFrequency in schema fpml-com-5-10_xsd2 Drilldown into exercisePeriod in schema fpml-com-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Exercise in schema fpml-shared-5-10_xsd4 Drilldown into CommodityAmericanExercise in schema fpml-com-5-10_xsd2XSD Diagram of americanExercise in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="americanExercise" type="CommodityAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the expiration date for an American option.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exercisePeriod nsE:exercisePeriod 0 unbounded
exerciseFrequency nsE:exerciseFrequency 0 (1)
latestExerciseTime nsE:latestExerciseTime (1) (1)
latestExerciseTimeDetermination nsE:latestExerciseTimeDetermination (1) (1)
expirationTime nsE:expirationTime 0 (1)
multipleExercise nsE:multipleExercise 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
