Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: americanExercise
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CommodityAmericanExercise
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the exercise period for an American style option together with the rules governing the quantity of the commodity that can be exercised on any given exercise date.

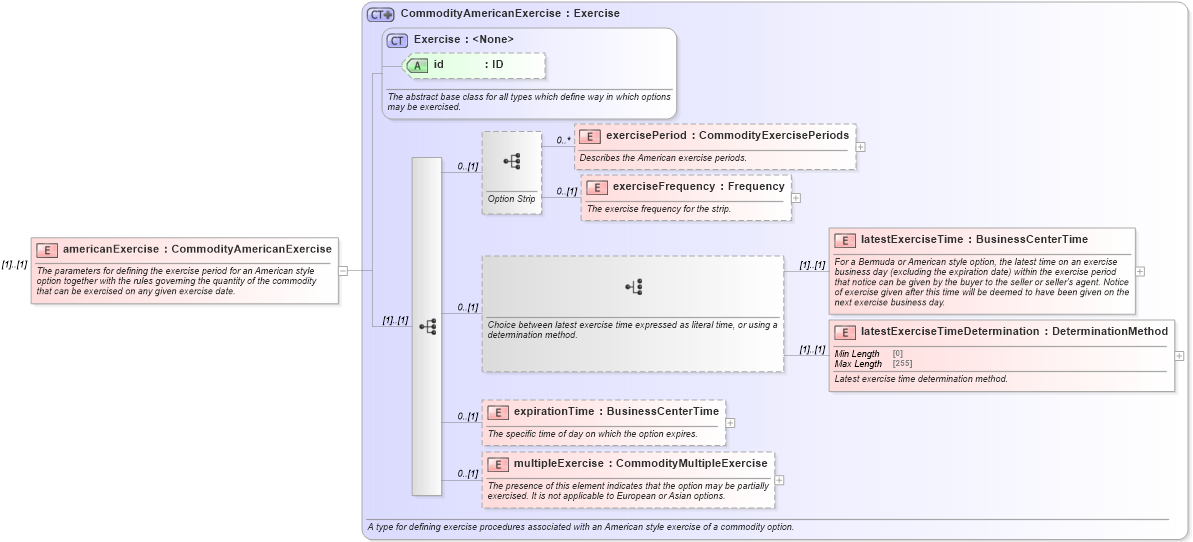

Collapse XSD Schema Diagram:
Drilldown into multipleExercise in schema fpml-com-5-10_xsd2 Drilldown into expirationTime in schema fpml-com-5-10_xsd2 Drilldown into latestExerciseTimeDetermination in schema fpml-com-5-10_xsd2 Drilldown into latestExerciseTime in schema fpml-com-5-10_xsd2 Drilldown into exerciseFrequency in schema fpml-com-5-10_xsd2 Drilldown into exercisePeriod in schema fpml-com-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Exercise in schema fpml-shared-5-10_xsd4 Drilldown into CommodityAmericanExercise in schema fpml-com-5-10_xsd2XSD Diagram of americanExercise in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="americanExercise" type="CommodityAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the exercise period for an American style option together with the rules governing the quantity of the commodity that can be exercised on any given exercise date.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exercisePeriod nsE:exercisePeriod 0 unbounded
exerciseFrequency nsE:exerciseFrequency 0 (1)
latestExerciseTime nsE:latestExerciseTime (1) (1)
latestExerciseTimeDetermination nsE:latestExerciseTimeDetermination (1) (1)
expirationTime nsE:expirationTime 0 (1)
multipleExercise nsE:multipleExercise 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
