Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: americanExercise
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:FxAmericanExercise
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the exercise period for an American style option.

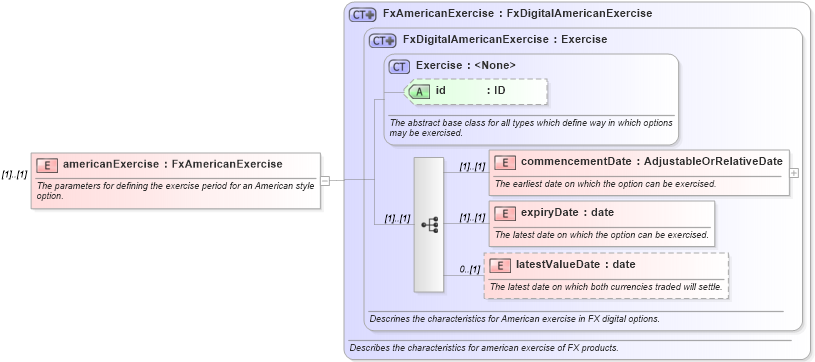

Collapse XSD Schema Diagram:
Drilldown into latestValueDate in schema fpml-fx-5-10_xsd4 Drilldown into expiryDate in schema fpml-fx-5-10_xsd4 Drilldown into commencementDate in schema fpml-fx-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Exercise in schema fpml-shared-5-10_xsd5 Drilldown into FxDigitalAmericanExercise in schema fpml-fx-5-10_xsd4 Drilldown into FxAmericanExercise in schema fpml-fx-5-10_xsd4XSD Diagram of americanExercise in schema fpml-fx-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="americanExercise" type="FxAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the exercise period for an American style option.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commencementDate nsF:commencementDate (1) (1)
expiryDate nsF:expiryDate (1) (1)
latestValueDate nsF:latestValueDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
