Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: assetReference
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:AssetReference
Containing Schema: fpml-repo-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
A reference to the collateral asset to which the margin requirement applies. This element should be produced in the case where margin requirements are specified for multiple pieces of collateral, and may be omitted otherwise.

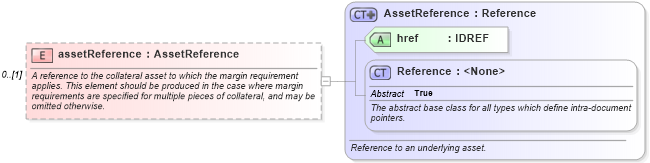

Collapse XSD Schema Diagram:
Drilldown into Reference in schema fpml-shared-5-10_xsd4 Drilldown into href in schema fpml-asset-5-10_xsd4 Drilldown into AssetReference in schema fpml-asset-5-10_xsd4XSD Diagram of assetReference in schema fpml-repo-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="assetReference" type="AssetReference" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A reference to the collateral asset to which the margin requirement applies. This element should be produced in the case where margin requirements are specified for multiple pieces of collateral, and may be omitted otherwise.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
href nsE:href Required
Collapse Derivation Tree:
