Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: attachment
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:Resource
Containing Schema: fpml-shared-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
A human readable document related to this transaction, for example a confirmation.

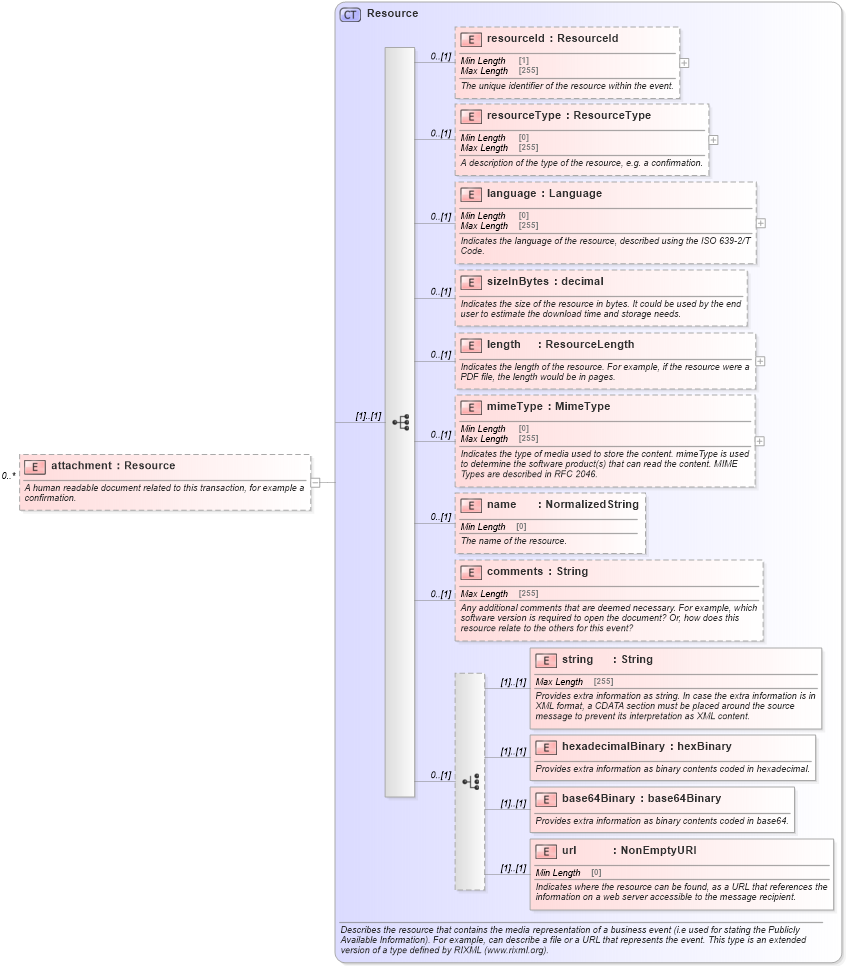

Collapse XSD Schema Diagram:
Drilldown into url in schema fpml-shared-5-10_xsd2 Drilldown into base64Binary in schema fpml-shared-5-10_xsd2 Drilldown into hexadecimalBinary in schema fpml-shared-5-10_xsd2 Drilldown into string in schema fpml-shared-5-10_xsd2 Drilldown into comments in schema fpml-shared-5-10_xsd2 Drilldown into name in schema fpml-shared-5-10_xsd2 Drilldown into mimeType in schema fpml-shared-5-10_xsd2 Drilldown into length in schema fpml-shared-5-10_xsd2 Drilldown into sizeInBytes in schema fpml-shared-5-10_xsd2 Drilldown into language in schema fpml-shared-5-10_xsd2 Drilldown into resourceType in schema fpml-shared-5-10_xsd2 Drilldown into resourceId in schema fpml-shared-5-10_xsd2 Drilldown into Resource in schema fpml-shared-5-10_xsd2XSD Diagram of attachment in schema fpml-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="attachment" type="Resource" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A human readable document related to this transaction, for example a confirmation.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
resourceId nsC:resourceId 0 (1)
resourceType nsC:resourceType 0 (1)
language nsC:language 0 (1)
sizeInBytes nsC:sizeInBytes 0 (1)
length nsC:length 0 (1)
mimeType nsC:mimeType 0 (1)
name nsC:name 0 (1)
comments nsC:comments 0 (1)
string nsC:string (1) (1)
hexadecimalBinary nsC:hexadecimalBinary (1) (1)
base64Binary nsC:base64Binary (1) (1)
url nsC:url (1) (1)
Collapse Derivation Tree:
