Definition Type:	Element
Name:	averageRate
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:FxAverageRate
Containing Schema:	fpml-fx-accruals-5-10.xsd
MinOccurs	0
MaxOccurs	(1)
Abstract
Documentation:	Average Rate: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.

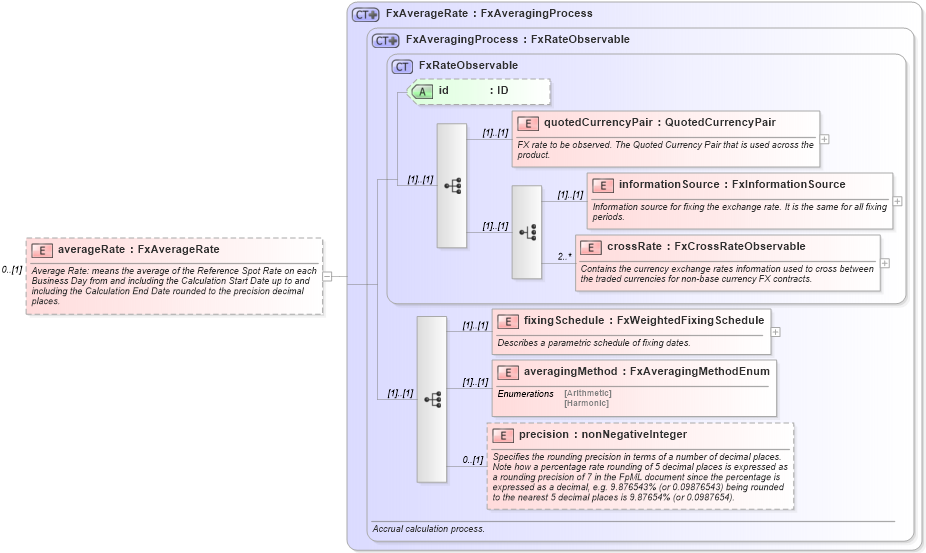

XSD Schema Diagram:

XSD Diagram of averageRate in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="averageRate" type="FxAverageRate" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Average Rate: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
quotedCurrencyPair	nsA:quotedCurrencyPair	(1)	(1)
informationSource	nsA:informationSource	(1)	(1)
crossRate	nsA:crossRate	2	unbounded
fixingSchedule	nsA:fixingSchedule	(1)	(1)
averagingMethod	nsA:averagingMethod	(1)	(1)
precision	nsA:precision	0	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsA:id		(Optional)

Derivation Tree:
	nsA:FxRateObservable nsA:FxAveragingProcess nsA:FxAverageRate *averageRate*
