Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: averageRate
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxAverageRate
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Average Rate Forward: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.

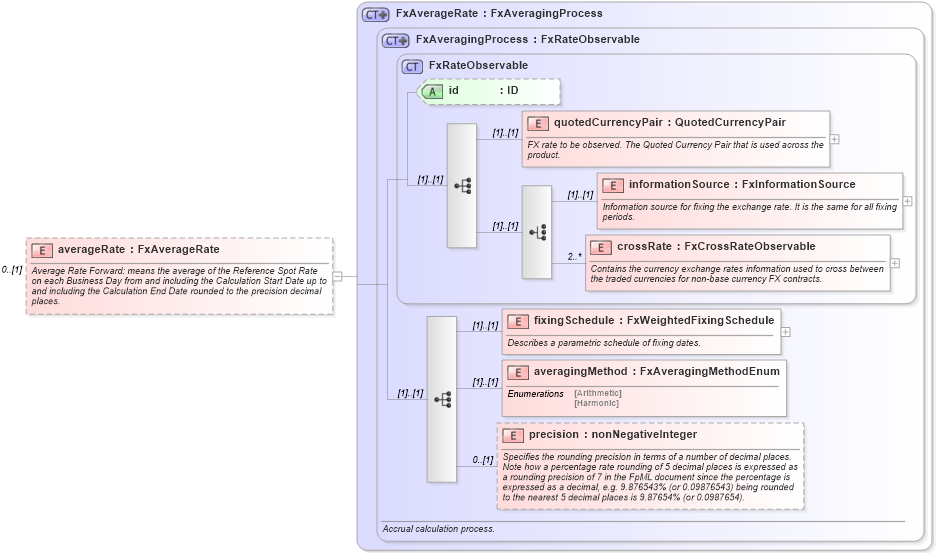

Collapse XSD Schema Diagram:
Drilldown into precision in schema fpml-fx-accruals-5-10_xsd1 Drilldown into averagingMethod in schema fpml-fx-accruals-5-10_xsd1 Drilldown into fixingSchedule in schema fpml-fx-accruals-5-10_xsd1 Drilldown into crossRate in schema fpml-fx-accruals-5-10_xsd1 Drilldown into informationSource in schema fpml-fx-accruals-5-10_xsd1 Drilldown into quotedCurrencyPair in schema fpml-fx-accruals-5-10_xsd1 Drilldown into id in schema fpml-fx-accruals-5-10_xsd1 Drilldown into FxRateObservable in schema fpml-fx-accruals-5-10_xsd1 Drilldown into FxAveragingProcess in schema fpml-fx-accruals-5-10_xsd1 Drilldown into FxAverageRate in schema fpml-fx-accruals-5-10_xsd1XSD Diagram of averageRate in schema fpml-fx-accruals-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="averageRate" type="FxAverageRate" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Average Rate Forward: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quotedCurrencyPair nsD:quotedCurrencyPair (1) (1)
informationSource nsD:informationSource (1) (1)
crossRate nsD:crossRate 2 unbounded
fixingSchedule nsD:fixingSchedule (1) (1)
averagingMethod nsD:averagingMethod (1) (1)
precision nsD:precision 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
