Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: averageRate
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxAverageRate
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Average Rate: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.

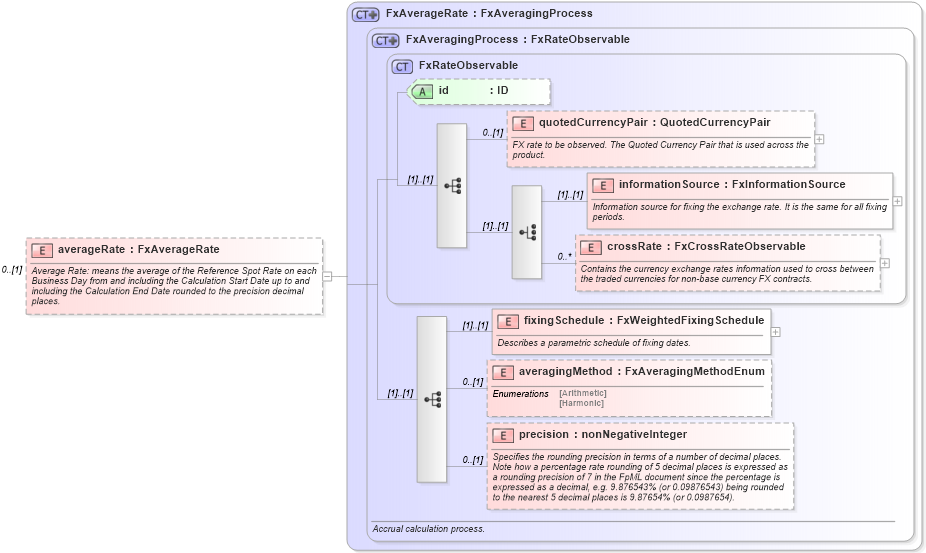

Collapse XSD Schema Diagram:
Drilldown into precision in schema fpml-fx-accruals-5-10_xsd2 Drilldown into averagingMethod in schema fpml-fx-accruals-5-10_xsd2 Drilldown into fixingSchedule in schema fpml-fx-accruals-5-10_xsd2 Drilldown into crossRate in schema fpml-fx-accruals-5-10_xsd2 Drilldown into informationSource in schema fpml-fx-accruals-5-10_xsd2 Drilldown into quotedCurrencyPair in schema fpml-fx-accruals-5-10_xsd2 Drilldown into id in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxRateObservable in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxAveragingProcess in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxAverageRate in schema fpml-fx-accruals-5-10_xsd2XSD Diagram of averageRate in schema fpml-fx-accruals-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="averageRate" type="FxAverageRate" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Average Rate: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quotedCurrencyPair nsE:quotedCurrencyPair 0 (1)
informationSource nsE:informationSource (1) (1)
crossRate nsE:crossRate 0 unbounded
fixingSchedule nsE:fixingSchedule (1) (1)
averagingMethod nsE:averagingMethod 0 (1)
precision nsE:precision 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
