Docs for schema item averageStrike in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	averageStrike
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:FxAverageStrike
Containing Schema:	fpml-fx-accruals-5-10.xsd
MinOccurs	(1)
MaxOccurs	(1)
Abstract
Documentation:	Average Strike: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.

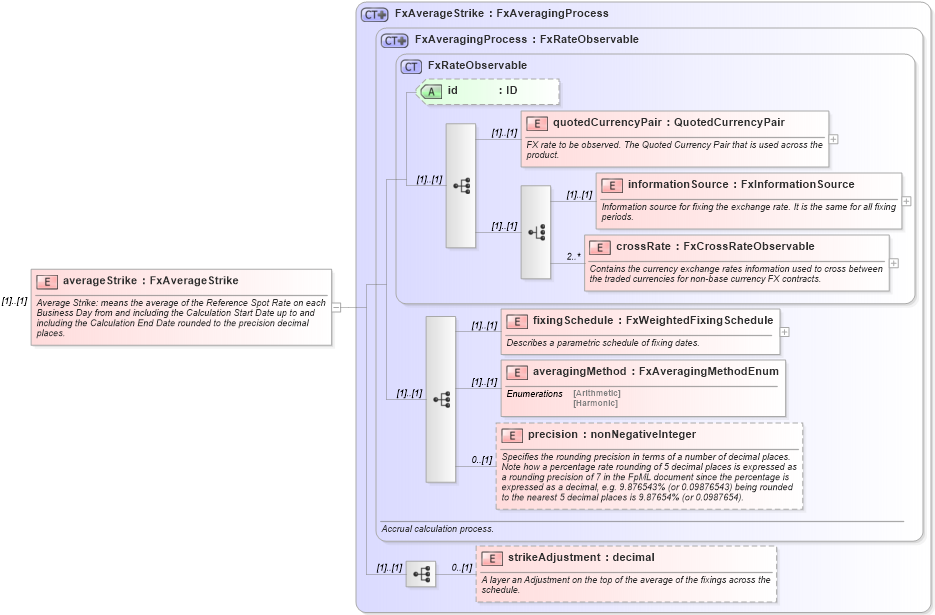

XSD Schema Diagram:

XSD Diagram of averageStrike in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="averageStrike" type="FxAverageStrike">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Average Strike: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
quotedCurrencyPair	nsA:quotedCurrencyPair	(1)	(1)
informationSource	nsA:informationSource	(1)	(1)
crossRate	nsA:crossRate	2	unbounded
fixingSchedule	nsA:fixingSchedule	(1)	(1)
averagingMethod	nsA:averagingMethod	(1)	(1)
precision	nsA:precision	0	(1)
strikeAdjustment	nsA:strikeAdjustment	0	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsA:id		(Optional)

Derivation Tree:
	nsA:FxRateObservable nsA:FxAveragingProcess nsA:FxAverageStrike *averageStrike*
