Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: barrier
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:FxBarrierFeature
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

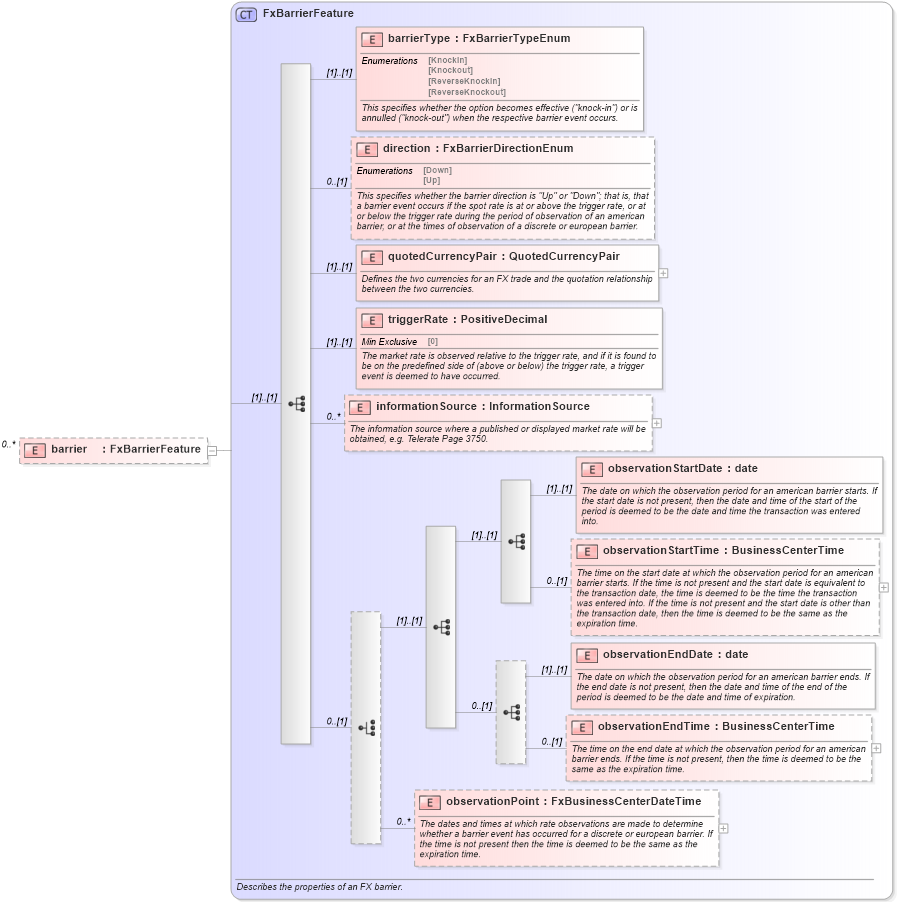

Collapse XSD Schema Diagram:
Drilldown into observationPoint in schema fpml-fx-5-10_xsd1 Drilldown into observationEndTime in schema fpml-fx-5-10_xsd1 Drilldown into observationEndDate in schema fpml-fx-5-10_xsd1 Drilldown into observationStartTime in schema fpml-fx-5-10_xsd1 Drilldown into observationStartDate in schema fpml-fx-5-10_xsd1 Drilldown into informationSource in schema fpml-fx-5-10_xsd1 Drilldown into triggerRate in schema fpml-fx-5-10_xsd1 Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd1 Drilldown into direction in schema fpml-fx-5-10_xsd1 Drilldown into barrierType in schema fpml-fx-5-10_xsd1 Drilldown into FxBarrierFeature in schema fpml-fx-5-10_xsd1XSD Diagram of barrier in schema fpml-fx-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="barrier" type="FxBarrierFeature" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barrierType nsC:barrierType (1) (1)
direction nsC:direction 0 (1)
quotedCurrencyPair nsC:quotedCurrencyPair (1) (1)
triggerRate nsC:triggerRate (1) (1)
informationSource nsC:informationSource 0 unbounded
observationStartDate nsC:observationStartDate (1) (1)
observationStartTime nsC:observationStartTime 0 (1)
observationEndDate nsC:observationEndDate (1) (1)
observationEndTime nsC:observationEndTime 0 (1)
observationPoint nsC:observationPoint 0 unbounded
Collapse Derivation Tree:
