Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: barrier
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxAccrualBarrier
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Defines a knockout barrier conditions where if a barrier event occurs, the accrual process is terminated for the duration of all remaining accrual periods. Settlement rights for the next settlement are either retained or extinguished.

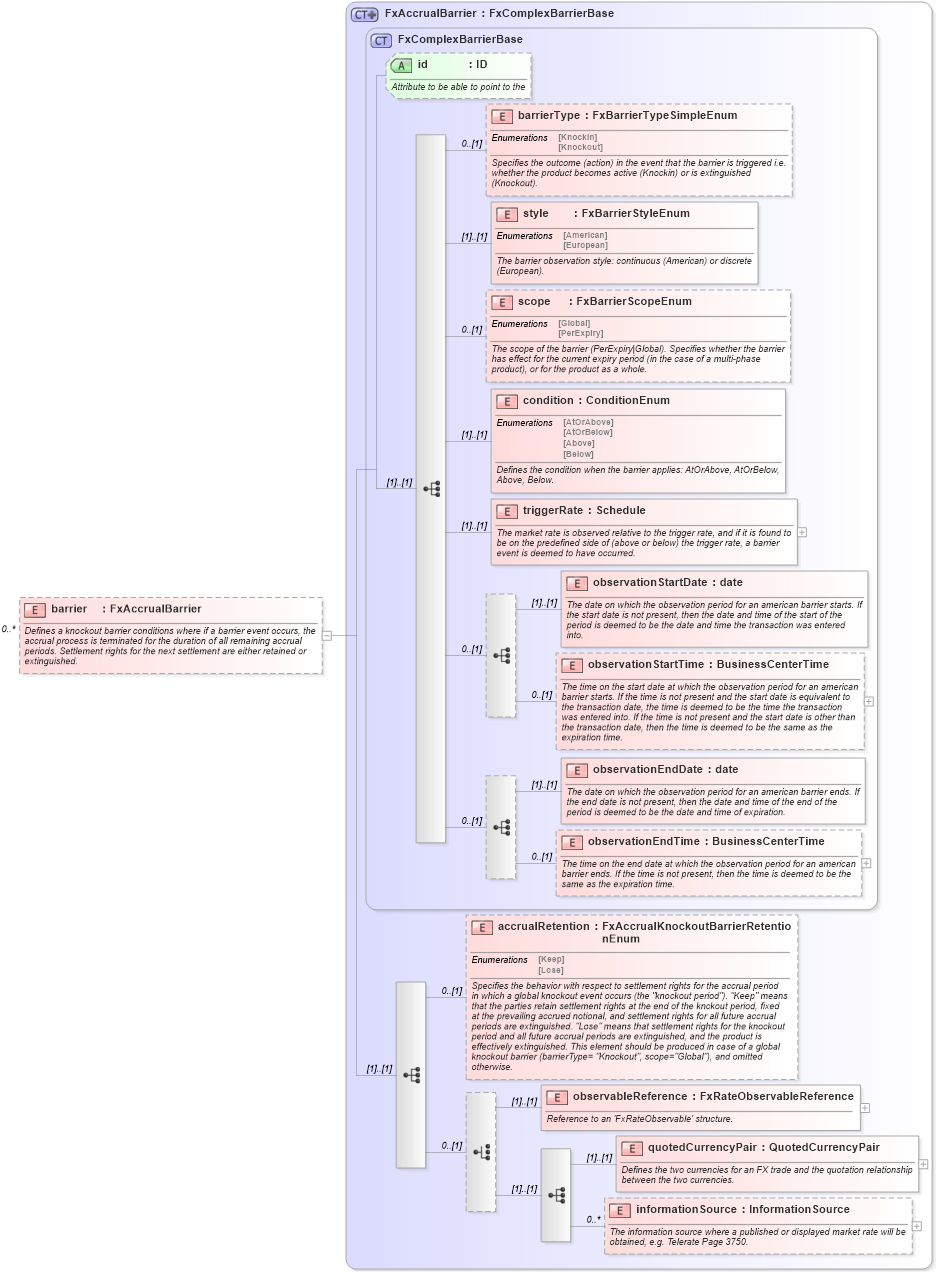

Collapse XSD Schema Diagram:
Drilldown into informationSource in schema fpml-fx-accruals-5-10_xsd1 Drilldown into quotedCurrencyPair in schema fpml-fx-accruals-5-10_xsd1 Drilldown into observableReference in schema fpml-fx-accruals-5-10_xsd1 Drilldown into accrualRetention in schema fpml-fx-accruals-5-10_xsd1 Drilldown into observationEndTime in schema fpml-fx-targets-5-10_xsd1 Drilldown into observationEndDate in schema fpml-fx-targets-5-10_xsd1 Drilldown into observationStartTime in schema fpml-fx-targets-5-10_xsd1 Drilldown into observationStartDate in schema fpml-fx-targets-5-10_xsd1 Drilldown into triggerRate in schema fpml-fx-targets-5-10_xsd1 Drilldown into condition in schema fpml-fx-targets-5-10_xsd1 Drilldown into scope in schema fpml-fx-targets-5-10_xsd1 Drilldown into style in schema fpml-fx-targets-5-10_xsd1 Drilldown into barrierType in schema fpml-fx-targets-5-10_xsd1 Drilldown into id in schema fpml-fx-targets-5-10_xsd1 Drilldown into FxComplexBarrierBase in schema fpml-fx-targets-5-10_xsd1 Drilldown into FxAccrualBarrier in schema fpml-fx-accruals-5-10_xsd1XSD Diagram of barrier in schema fpml-fx-accruals-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="barrier" type="FxAccrualBarrier" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a knockout barrier conditions where if a barrier event occurs, the accrual process is terminated for the duration of all remaining accrual periods. Settlement rights for the next settlement are either retained or extinguished.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barrierType nsD:barrierType 0 (1)
style nsD:style (1) (1)
scope nsD:scope 0 (1)
condition nsD:condition (1) (1)
triggerRate nsD:triggerRate (1) (1)
observationStartDate nsD:observationStartDate (1) (1)
observationStartTime nsD:observationStartTime 0 (1)
observationEndDate nsD:observationEndDate (1) (1)
observationEndTime nsD:observationEndTime 0 (1)
accrualRetention nsD:accrualRetention 0 (1)
observableReference nsD:observableReference (1) (1)
quotedCurrencyPair nsD:quotedCurrencyPair (1) (1)
informationSource nsD:informationSource 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id Optional
Collapse Derivation Tree:
