Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: barrier
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxAccrualBarrier
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Defines a FX Accrual barrier conditions. Element barrier/scope specifies whether the barrier applies to the expiry period in which it is observed, or globally for whole product.

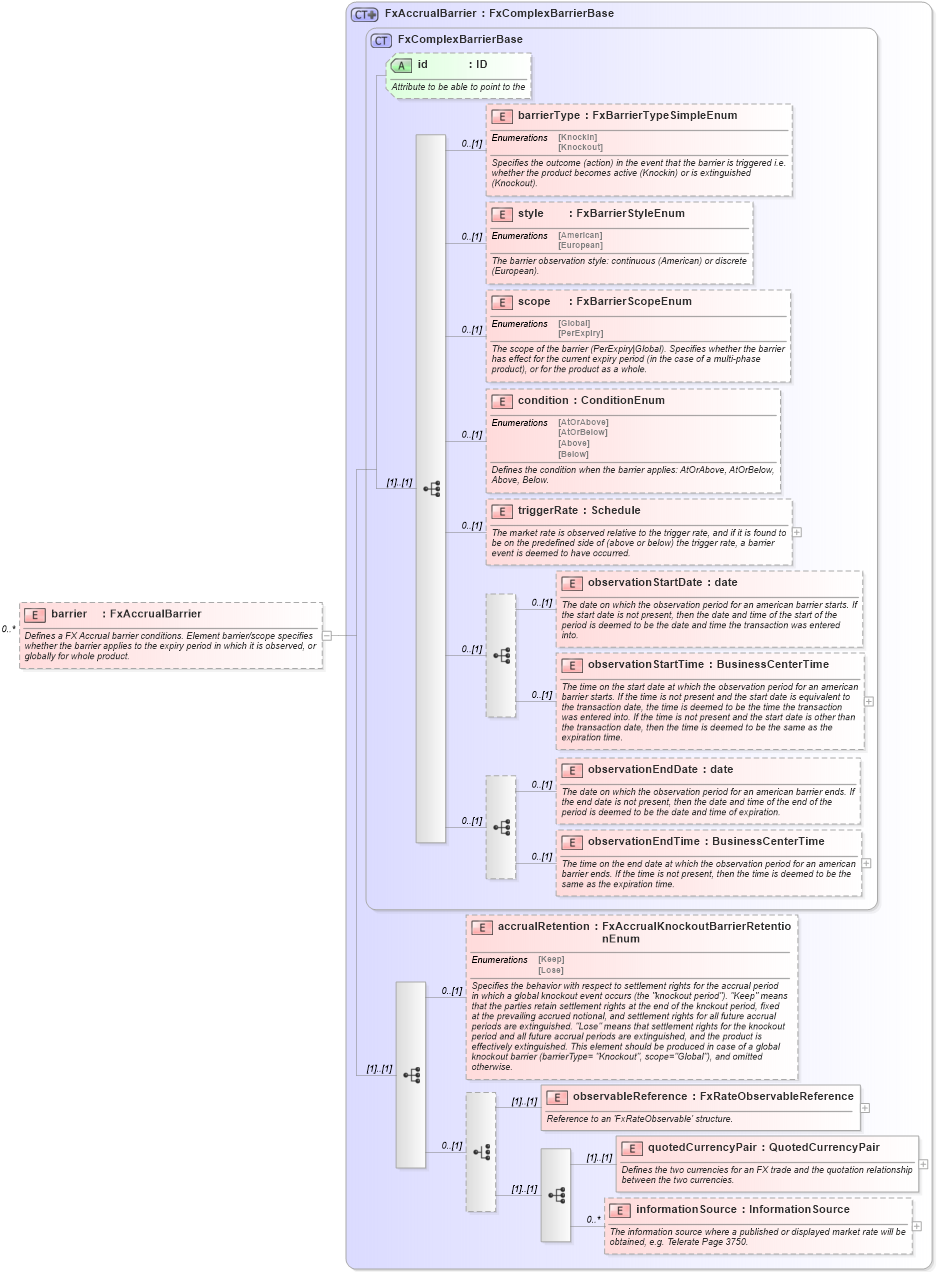

Collapse XSD Schema Diagram:
Drilldown into informationSource in schema fpml-fx-accruals-5-10_xsd2 Drilldown into quotedCurrencyPair in schema fpml-fx-accruals-5-10_xsd2 Drilldown into observableReference in schema fpml-fx-accruals-5-10_xsd2 Drilldown into accrualRetention in schema fpml-fx-accruals-5-10_xsd2 Drilldown into observationEndTime in schema fpml-fx-targets-5-10_xsd2 Drilldown into observationEndDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into observationStartTime in schema fpml-fx-targets-5-10_xsd2 Drilldown into observationStartDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into triggerRate in schema fpml-fx-targets-5-10_xsd2 Drilldown into condition in schema fpml-fx-targets-5-10_xsd2 Drilldown into scope in schema fpml-fx-targets-5-10_xsd2 Drilldown into style in schema fpml-fx-targets-5-10_xsd2 Drilldown into barrierType in schema fpml-fx-targets-5-10_xsd2 Drilldown into id in schema fpml-fx-targets-5-10_xsd2 Drilldown into FxComplexBarrierBase in schema fpml-fx-targets-5-10_xsd2 Drilldown into FxAccrualBarrier in schema fpml-fx-accruals-5-10_xsd2XSD Diagram of barrier in schema fpml-fx-accruals-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="barrier" type="FxAccrualBarrier" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a FX Accrual barrier conditions. Element barrier/scope specifies whether the barrier applies to the expiry period in which it is observed, or globally for whole product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barrierType nsE:barrierType 0 (1)
style nsE:style 0 (1)
scope nsE:scope 0 (1)
condition nsE:condition 0 (1)
triggerRate nsE:triggerRate 0 (1)
observationStartDate nsE:observationStartDate 0 (1)
observationStartTime nsE:observationStartTime 0 (1)
observationEndDate nsE:observationEndDate 0 (1)
observationEndTime nsE:observationEndTime 0 (1)
accrualRetention nsE:accrualRetention 0 (1)
observableReference nsE:observableReference (1) (1)
quotedCurrencyPair nsE:quotedCurrencyPair (1) (1)
informationSource nsE:informationSource 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id Optional
Collapse Derivation Tree:
