Definition Type:	Element
Name:	barrier
Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	nsE:FxTargetBarrier
Containing Schema:	fpml-fx-targets-5-10.xsd
MinOccurs	0
MaxOccurs	unbounded
Abstract
Documentation:	Generic FxTarget barrier. Element "scope" specifies whether the barrier has effect for the expiry period in which it is observed, or globally for whole product. Optional element "rebate" may be produced in conjunction with a Global Knockout barrier, to specify a rebate payable in the event of knockout.

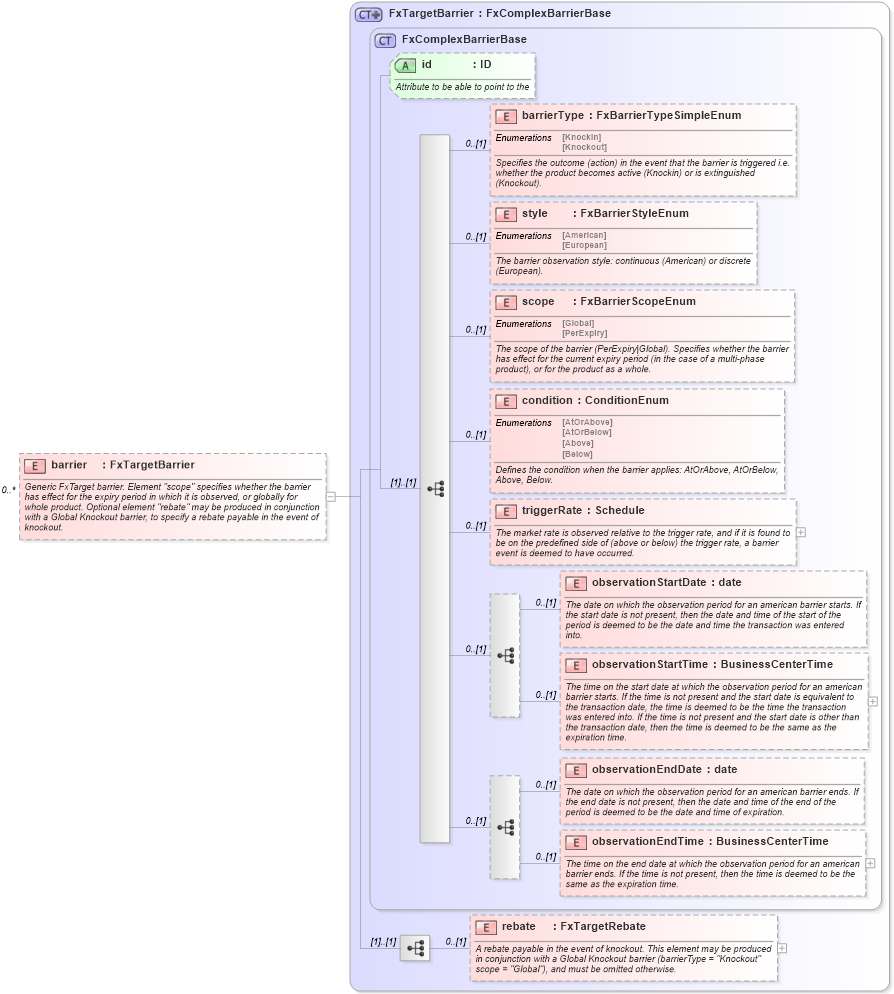

XSD Schema Diagram:

XSD Diagram of barrier in schema fpml-fx-targets-5-10_xsd2 (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="barrier" type="FxTargetBarrier" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Generic FxTarget barrier. Element "scope" specifies whether the barrier has effect for the expiry period in which it is observed, or globally for whole product. Optional element "rebate" may be produced in conjunction with a Global Knockout barrier, to specify a rebate payable in the event of knockout.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
barrierType	nsE:barrierType	0	(1)
style	nsE:style	0	(1)
scope	nsE:scope	0	(1)
condition	nsE:condition	0	(1)
triggerRate	nsE:triggerRate	0	(1)
observationStartDate	nsE:observationStartDate	0	(1)
observationStartTime	nsE:observationStartTime	0	(1)
observationEndDate	nsE:observationEndDate	0	(1)
observationEndTime	nsE:observationEndTime	0	(1)
rebate	nsE:rebate	0	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsE:id		Optional

Derivation Tree:
	nsE:FxComplexBarrierBase nsE:FxTargetBarrier *barrier*
