Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: basketConstituent
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:BasketConstituent
Containing Schema: fpml-asset-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Describes each of the components of the basket.

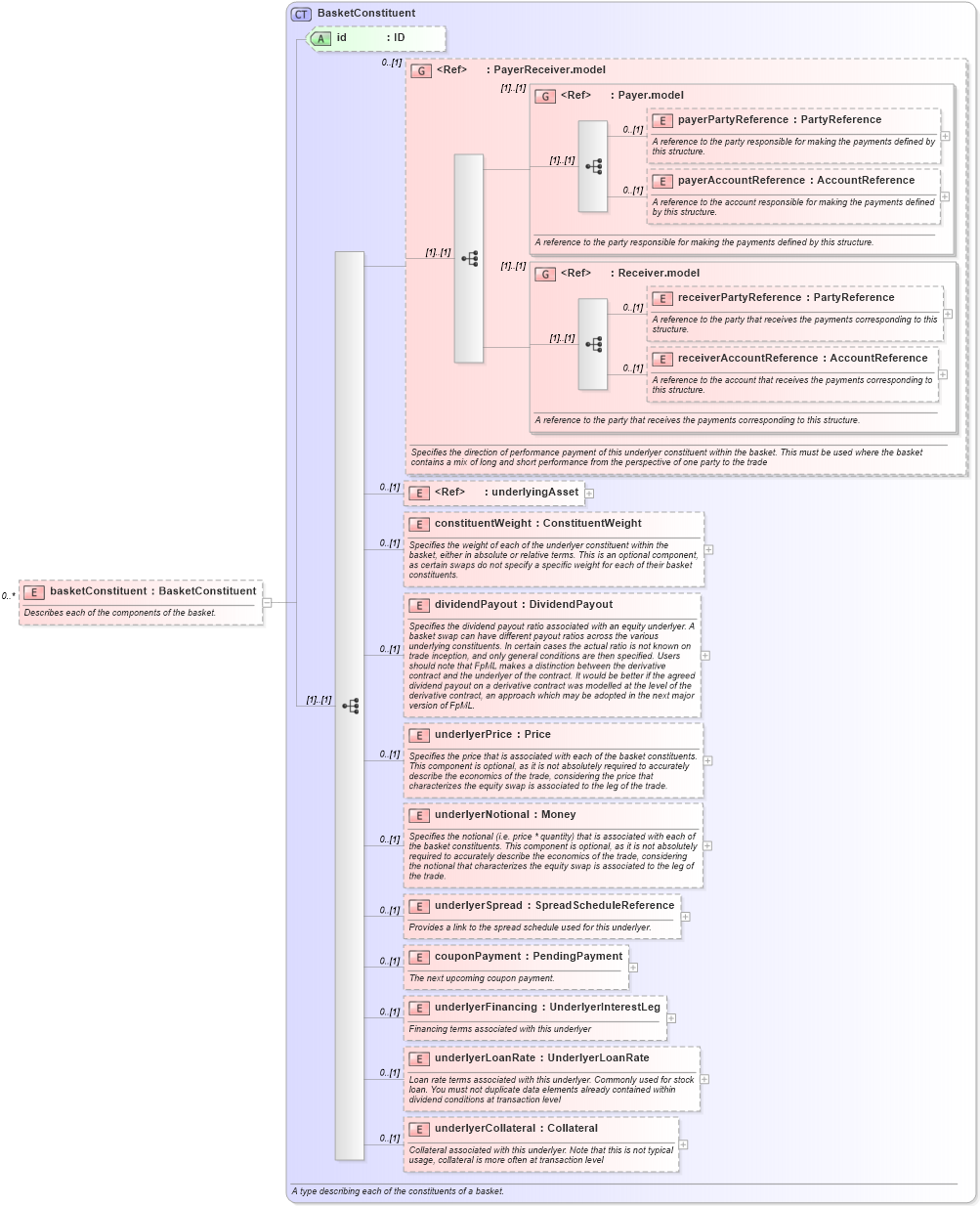

Collapse XSD Schema Diagram:
Drilldown into underlyerCollateral in schema fpml-asset-5-10_xsd4 Drilldown into underlyerLoanRate in schema fpml-asset-5-10_xsd4 Drilldown into underlyerFinancing in schema fpml-asset-5-10_xsd4 Drilldown into couponPayment in schema fpml-asset-5-10_xsd4 Drilldown into underlyerSpread in schema fpml-asset-5-10_xsd4 Drilldown into underlyerNotional in schema fpml-asset-5-10_xsd4 Drilldown into underlyerPrice in schema fpml-asset-5-10_xsd4 Drilldown into dividendPayout in schema fpml-asset-5-10_xsd4 Drilldown into constituentWeight in schema fpml-asset-5-10_xsd4 Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd4 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd4 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Payer.model in schema fpml-shared-5-10_xsd4 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-asset-5-10_xsd4 Drilldown into BasketConstituent in schema fpml-asset-5-10_xsd4XSD Diagram of basketConstituent in schema fpml-asset-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="basketConstituent" type="BasketConstituent" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes each of the components of the basket.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsE:payerPartyReference 0 (1)
payerAccountReference nsE:payerAccountReference 0 (1)
receiverPartyReference nsE:receiverPartyReference 0 (1)
receiverAccountReference nsE:receiverAccountReference 0 (1)
underlyingAsset nsE:underlyingAsset 0 (1)
constituentWeight nsE:constituentWeight 0 (1)
dividendPayout nsE:dividendPayout 0 (1)
underlyerPrice nsE:underlyerPrice 0 (1)
underlyerNotional nsE:underlyerNotional 0 (1)
underlyerSpread nsE:underlyerSpread 0 (1)
couponPayment nsE:couponPayment 0 (1)
underlyerFinancing nsE:underlyerFinancing 0 (1)
underlyerLoanRate nsE:underlyerLoanRate 0 (1)
underlyerCollateral nsE:underlyerCollateral 0 (1)
<xs:group> nsE:PayerReceiver.model 0 (1)
<xs:group> nsE:Payer.model (1) (1)
<xs:group> nsE:Receiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id Optional
Collapse Derivation Tree:
