Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: basketConstituent
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:BasketConstituent
Containing Schema: fpml-asset-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Describes each of the components of the basket.

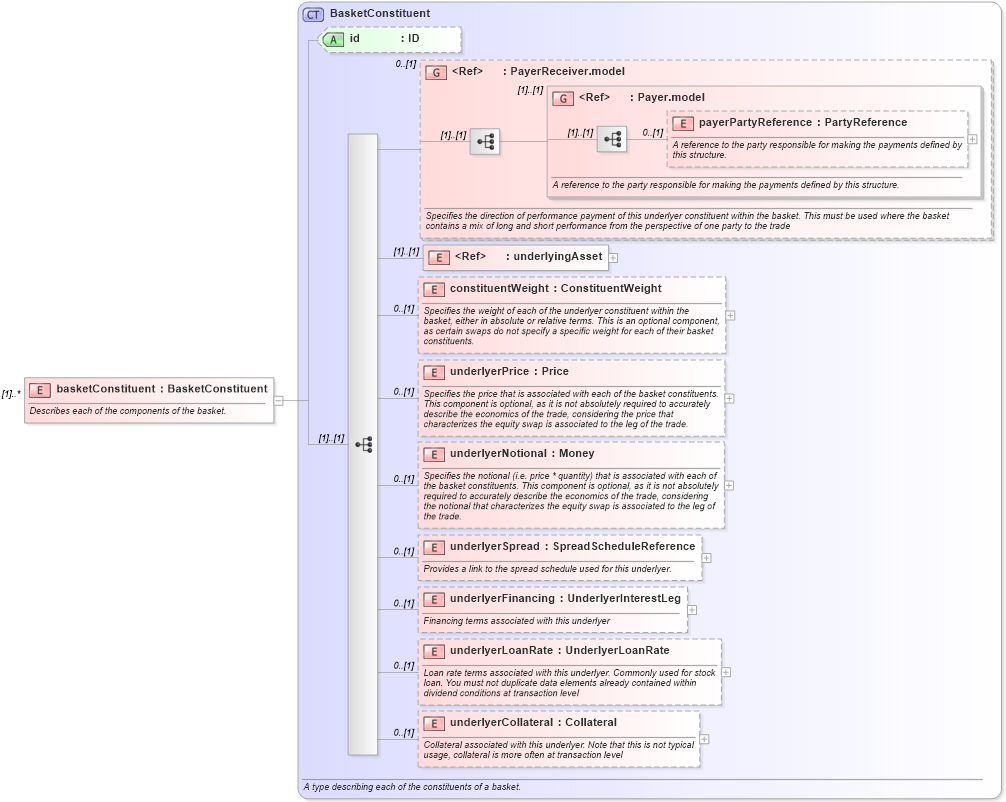

Collapse XSD Schema Diagram:
Drilldown into underlyerCollateral in schema fpml-asset-5-10_xsd5 Drilldown into underlyerLoanRate in schema fpml-asset-5-10_xsd5 Drilldown into underlyerFinancing in schema fpml-asset-5-10_xsd5 Drilldown into underlyerSpread in schema fpml-asset-5-10_xsd5 Drilldown into underlyerNotional in schema fpml-asset-5-10_xsd5 Drilldown into underlyerPrice in schema fpml-asset-5-10_xsd5 Drilldown into constituentWeight in schema fpml-asset-5-10_xsd5 Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd5 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into Payer.model in schema fpml-shared-5-10_xsd5 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-asset-5-10_xsd5 Drilldown into BasketConstituent in schema fpml-asset-5-10_xsd5XSD Diagram of basketConstituent in schema fpml-asset-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="basketConstituent" type="BasketConstituent" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes each of the components of the basket.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsF:payerPartyReference 0 (1)
underlyingAsset nsF:underlyingAsset (1) (1)
constituentWeight nsF:constituentWeight 0 (1)
underlyerPrice nsF:underlyerPrice 0 (1)
underlyerNotional nsF:underlyerNotional 0 (1)
underlyerSpread nsF:underlyerSpread 0 (1)
underlyerFinancing nsF:underlyerFinancing 0 (1)
underlyerLoanRate nsF:underlyerLoanRate 0 (1)
underlyerCollateral nsF:underlyerCollateral 0 (1)
<xs:group> nsF:PayerReceiver.model 0 (1)
<xs:group> nsF:Payer.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id Optional
Collapse Derivation Tree:
