Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: beneficiary
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:Beneficiary
Containing Schema: fpml-shared-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The ultimate beneficiary of the funds. The beneficiary can be identified either by an account at the beneficiaryBank (qv) or by explicit routingInformation. This element provides for the latter.

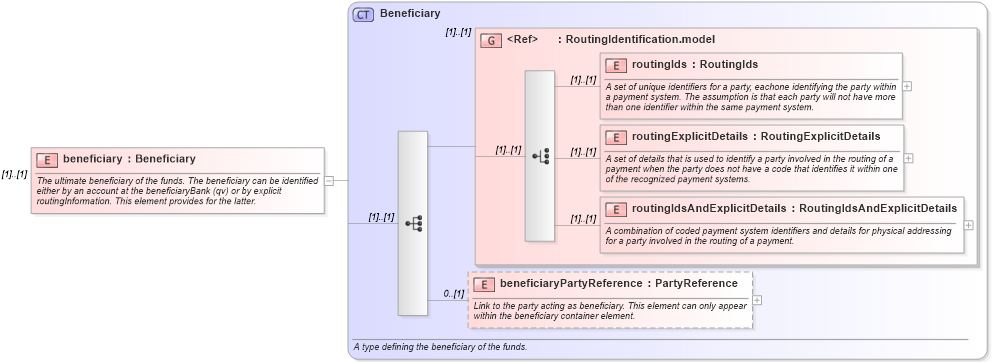

Collapse XSD Schema Diagram:
Drilldown into beneficiaryPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into routingIdsAndExplicitDetails in schema fpml-shared-5-10_xsd2 Drilldown into routingExplicitDetails in schema fpml-shared-5-10_xsd2 Drilldown into routingIds in schema fpml-shared-5-10_xsd2 Drilldown into RoutingIdentification.model in schema fpml-shared-5-10_xsd2 Drilldown into Beneficiary in schema fpml-shared-5-10_xsd2XSD Diagram of beneficiary in schema fpml-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="beneficiary" type="Beneficiary">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The ultimate beneficiary of the funds. The beneficiary can be identified either by an account at the beneficiaryBank (qv) or by explicit routingInformation. This element provides for the latter.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
routingIds nsC:routingIds (1) (1)
routingExplicitDetails nsC:routingExplicitDetails (1) (1)
routingIdsAndExplicitDetails nsC:routingIdsAndExplicitDetails (1) (1)
beneficiaryPartyReference nsC:beneficiaryPartyReference 0 (1)
<xs:group> nsC:RoutingIdentification.model (1) (1)
Collapse Derivation Tree:
