Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: blockTradeId
Namespace: http://www.fpml.org/FpML-5/legal
Type: nsB:TradeIdentifier
Containing Schema: fpml-doc-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The trade id of the block trade. This is used by each one of the allocated trades to reference the block trade. This element can also represent the trade id of the parent trade for N-level allocations. In the case, this element is only used to model N-level allocations in which the trade acts as block and allocated trade at the same time. This basically means the ability to allocate a block trade to multiple allocation trades, and then allocate these in turn to other allocation trades (and so on if desired).

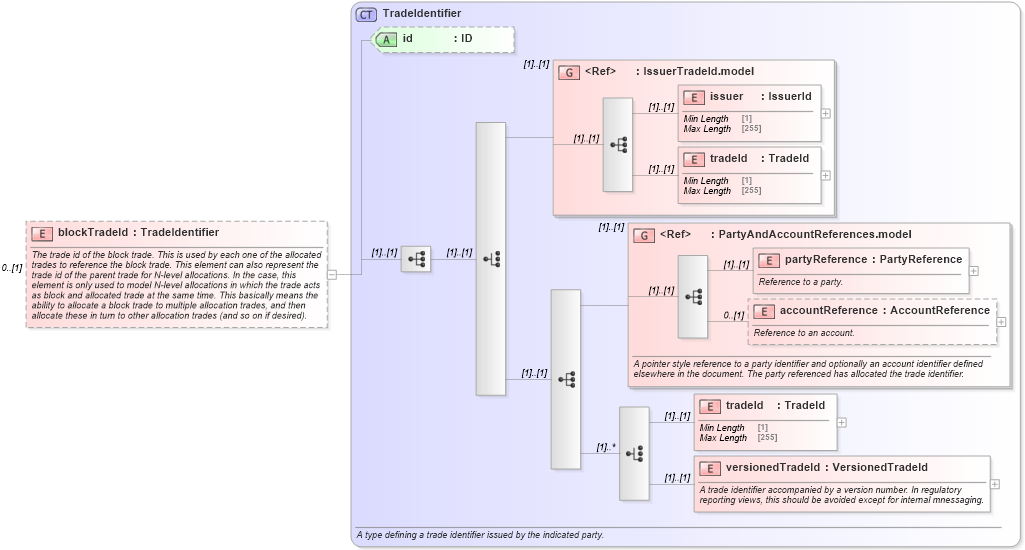

Collapse XSD Schema Diagram:
Drilldown into versionedTradeId in schema fpml-doc-5-10_xsd1 Drilldown into tradeId in schema fpml-doc-5-10_xsd1 Drilldown into accountReference in schema fpml-shared-5-10_xsd1 Drilldown into partyReference in schema fpml-shared-5-10_xsd1 Drilldown into PartyAndAccountReferences.model in schema fpml-shared-5-10_xsd1 Drilldown into tradeId in schema fpml-shared-5-10_xsd1 Drilldown into issuer in schema fpml-shared-5-10_xsd1 Drilldown into IssuerTradeId.model in schema fpml-shared-5-10_xsd1 Drilldown into id in schema fpml-doc-5-10_xsd1 Drilldown into TradeIdentifier in schema fpml-doc-5-10_xsd1XSD Diagram of blockTradeId in schema fpml-doc-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="blockTradeId" type="TradeIdentifier" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The trade id of the block trade. This is used by each one of the allocated trades to reference the block trade. This element can also represent the trade id of the parent trade for N-level allocations. In the case, this element is only used to model N-level allocations in which the trade acts as block and allocated trade at the same time. This basically means the ability to allocate a block trade to multiple allocation trades, and then allocate these in turn to other allocation trades (and so on if desired).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
issuer nsB:issuer (1) (1)
tradeId nsB:tradeId (1) (1)
partyReference nsB:partyReference (1) (1)
accountReference nsB:accountReference 0 (1)
tradeId nsB:tradeId (1) (1)
versionedTradeId nsB:versionedTradeId (1) (1)
<xs:group> nsB:IssuerTradeId.model (1) (1)
<xs:group> nsB:PartyAndAccountReferences.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
