Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: BondCalculation.model
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-asset-5-10.xsd
Documentation:
A group that specifies Bond Calculation elements.

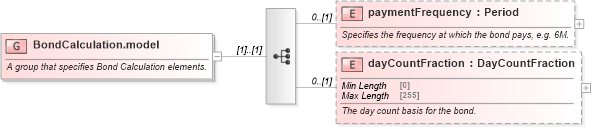

Collapse XSD Schema Diagram:
Drilldown into dayCountFraction in schema fpml-asset-5-10_xsd2 Drilldown into paymentFrequency in schema fpml-asset-5-10_xsd2XSD Diagram of BondCalculation.model in schema fpml-asset-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="BondCalculation.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A group that specifies Bond Calculation elements.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="paymentFrequency" type="Period" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies the frequency at which the bond pays, e.g. 6M.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dayCountFraction" type="DayCountFraction" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The day count basis for the bond.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
paymentFrequency nsC:paymentFrequency 0 (1)
dayCountFraction nsC:dayCountFraction 0 (1)
