Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: bullionPhysicalLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:BullionPhysicalLeg
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
The physical leg of a Commodity Forward Transaction for which the underlyer is Bullion.

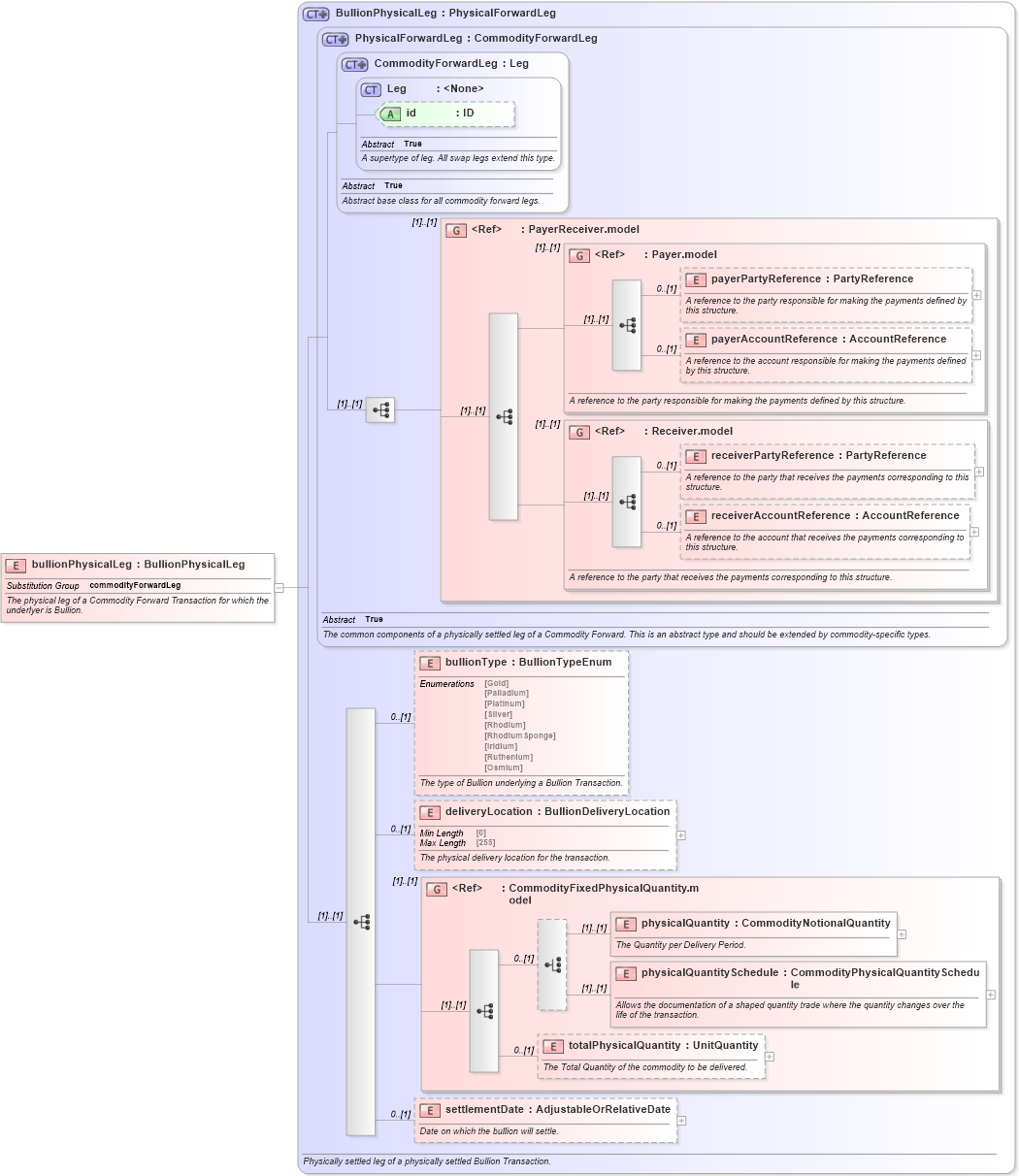

Collapse XSD Schema Diagram:
Drilldown into settlementDate in schema fpml-com-5-10_xsd2 Drilldown into totalPhysicalQuantity in schema fpml-com-5-10_xsd2 Drilldown into physicalQuantitySchedule in schema fpml-com-5-10_xsd2 Drilldown into physicalQuantity in schema fpml-com-5-10_xsd2 Drilldown into CommodityFixedPhysicalQuantity.model in schema fpml-com-5-10_xsd2 Drilldown into deliveryLocation in schema fpml-com-5-10_xsd2 Drilldown into bullionType in schema fpml-com-5-10_xsd2 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd4 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Payer.model in schema fpml-shared-5-10_xsd4 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Leg in schema fpml-shared-5-10_xsd4 Drilldown into CommodityForwardLeg in schema fpml-com-5-10_xsd2 Drilldown into PhysicalForwardLeg in schema fpml-com-5-10_xsd2 Drilldown into BullionPhysicalLeg in schema fpml-com-5-10_xsd2XSD Diagram of bullionPhysicalLeg in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="bullionPhysicalLeg" type="BullionPhysicalLeg" substitutionGroup="commodityForwardLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical leg of a Commodity Forward Transaction for which the underlyer is Bullion.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsE:payerPartyReference 0 (1)
payerAccountReference nsE:payerAccountReference 0 (1)
receiverPartyReference nsE:receiverPartyReference 0 (1)
receiverAccountReference nsE:receiverAccountReference 0 (1)
bullionType nsE:bullionType 0 (1)
deliveryLocation nsE:deliveryLocation 0 (1)
physicalQuantity nsE:physicalQuantity (1) (1)
physicalQuantitySchedule nsE:physicalQuantitySchedule (1) (1)
totalPhysicalQuantity nsE:totalPhysicalQuantity 0 (1)
settlementDate nsE:settlementDate 0 (1)
<xs:group> nsE:PayerReceiver.model (1) (1)
<xs:group> nsE:Payer.model (1) (1)
<xs:group> nsE:Receiver.model (1) (1)
<xs:group> nsE:CommodityFixedPhysicalQuantity.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:commodityForwardLeg
