Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: businessCenter
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:BusinessCenter
Containing Schema: fpml-shared-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

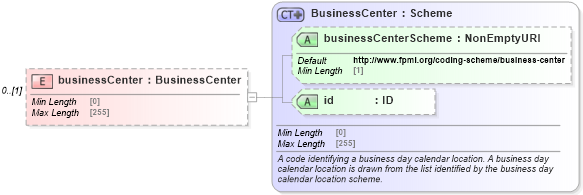

Collapse XSD Schema Diagram:
Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into businessCenterScheme in schema fpml-shared-5-10_xsd5 Drilldown into BusinessCenter in schema fpml-shared-5-10_xsd5XSD Diagram of businessCenter in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="businessCenter" type="BusinessCenter" minOccurs="0" />
Collapse Child Attributes:
Name Type Default Value Use
businessCenterScheme nsF:businessCenterScheme http://www.fpml.org/coding-scheme/business-center (Optional)
id nsF:id (Optional)
Collapse Derivation Tree:
