Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: calculationPeriodsSchedule
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:CommodityCalculationPeriodsSchedule
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A parametric representation of the Calculation Periods of the Commodity Option Transaction.

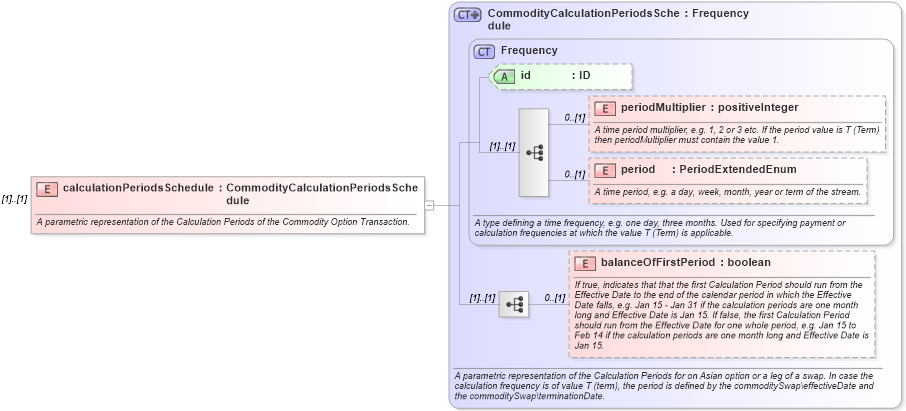

Collapse XSD Schema Diagram:
Drilldown into balanceOfFirstPeriod in schema fpml-com-5-10_xsd1 Drilldown into period in schema fpml-shared-5-10_xsd3 Drilldown into periodMultiplier in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Frequency in schema fpml-shared-5-10_xsd3 Drilldown into CommodityCalculationPeriodsSchedule in schema fpml-com-5-10_xsd1XSD Diagram of calculationPeriodsSchedule in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="calculationPeriodsSchedule" type="CommodityCalculationPeriodsSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A parametric representation of the Calculation Periods of the Commodity Option Transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsD:periodMultiplier 0 (1)
period nsD:period 0 (1)
balanceOfFirstPeriod nsD:balanceOfFirstPeriod 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
