Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: capFloor
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CapFloor
Containing Schema: fpml-ird-5-10.xsd
Abstract
Documentation:
A cap, floor or cap floor structures product definition.

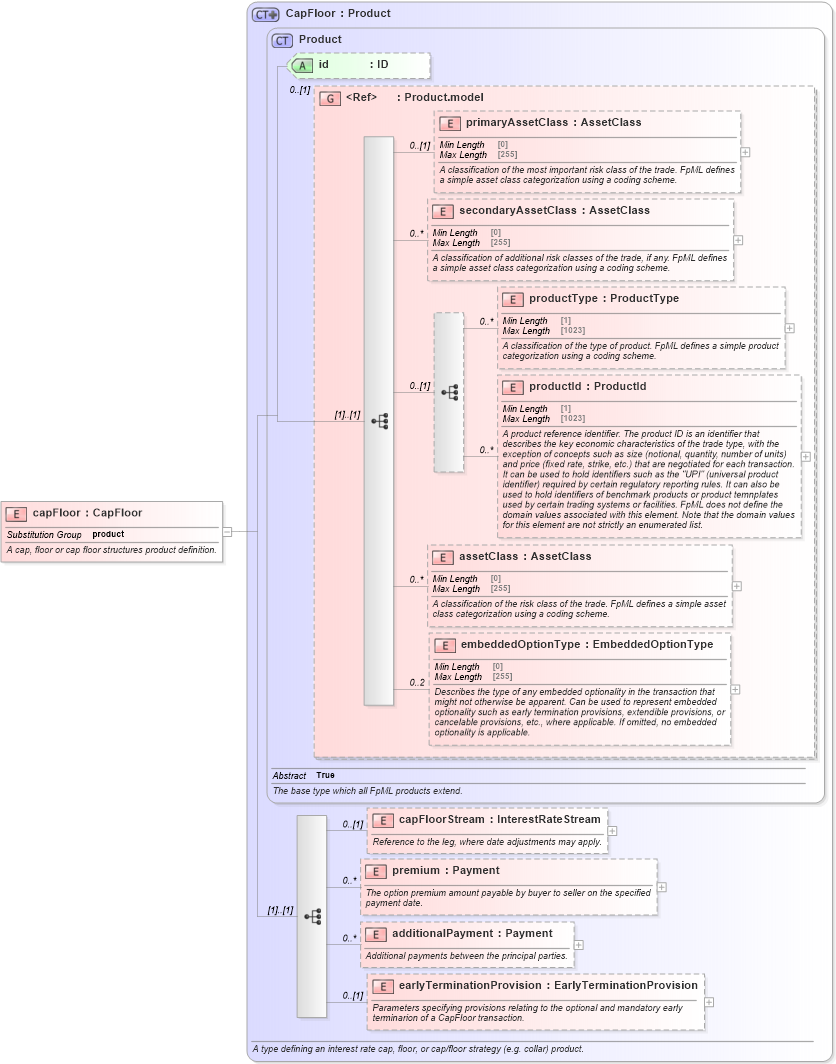

Collapse XSD Schema Diagram:
Drilldown into earlyTerminationProvision in schema fpml-ird-5-10_xsd3 Drilldown into additionalPayment in schema fpml-ird-5-10_xsd3 Drilldown into premium in schema fpml-ird-5-10_xsd3 Drilldown into capFloorStream in schema fpml-ird-5-10_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd4 Drilldown into assetClass in schema fpml-shared-5-10_xsd4 Drilldown into productId in schema fpml-shared-5-10_xsd4 Drilldown into productType in schema fpml-shared-5-10_xsd4 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into Product.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Product in schema fpml-shared-5-10_xsd4 Drilldown into CapFloor in schema fpml-ird-5-10_xsd3XSD Diagram of capFloor in schema fpml-ird-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="capFloor" type="CapFloor" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A cap, floor or cap floor structures product definition.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsE:primaryAssetClass 0 (1)
secondaryAssetClass nsE:secondaryAssetClass 0 unbounded
productType nsE:productType 0 unbounded
productId nsE:productId 0 unbounded
assetClass nsE:assetClass 0 unbounded
embeddedOptionType nsE:embeddedOptionType 0 2
capFloorStream nsE:capFloorStream 0 (1)
premium nsE:premium 0 unbounded
additionalPayment nsE:additionalPayment 0 unbounded
earlyTerminationProvision nsE:earlyTerminationProvision 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:product
