Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: cashflows
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:Cashflows
Containing Schema: fpml-ird-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The cashflows representation of the swap stream. - For use with pre-trade Credit Limit Check messages.
Collapse XSD Schema Diagram:

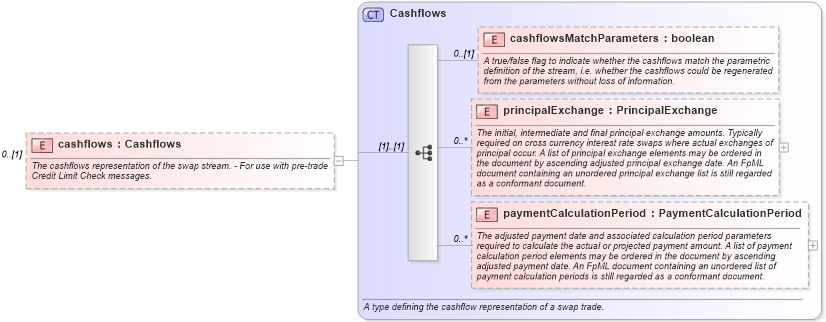

Drilldown into paymentCalculationPeriod in schema fpml-ird-5-10_xsd1 Drilldown into principalExchange in schema fpml-ird-5-10_xsd1 Drilldown into cashflowsMatchParameters in schema fpml-ird-5-10_xsd1 Drilldown into Cashflows in schema fpml-ird-5-10_xsd1XSD Diagram of cashflows in schema fpml-ird-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="cashflows" type="Cashflows" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The cashflows representation of the swap stream. - For use with pre-trade Credit Limit Check messages.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cashflowsMatchParameters nsC:cashflowsMatchParameters 0 (1)
principalExchange nsC:principalExchange 0 unbounded
paymentCalculationPeriod nsC:paymentCalculationPeriod 0 unbounded
Collapse Derivation Tree:
