Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: cashSettlement
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:FxCashSettlementSimple
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Specifies the settlement type for the FxStraddle. If deliverable then this element is removed. If non-deliverable, then the In-The-Money amount of the relevant option within the FxStraddle is paid by the Seller to the Buyer. The In-The-Money amount is calculated using the parameters within this element.

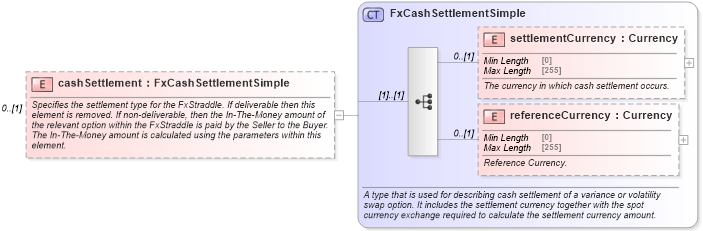

Collapse XSD Schema Diagram:
Drilldown into referenceCurrency in schema fpml-shared-5-10_xsd5 Drilldown into settlementCurrency in schema fpml-shared-5-10_xsd5 Drilldown into FxCashSettlementSimple in schema fpml-shared-5-10_xsd5XSD Diagram of cashSettlement in schema fpml-fx-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="cashSettlement" type="FxCashSettlementSimple" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the settlement type for the FxStraddle. If deliverable then this element is removed. If non-deliverable, then the In-The-Money amount of the relevant option within the FxStraddle is paid by the Seller to the Buyer. The In-The-Money amount is calculated using the parameters within this element.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementCurrency nsF:settlementCurrency 0 (1)
referenceCurrency nsF:referenceCurrency 0 (1)
Collapse Derivation Tree:
