Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: cashSettlementValuationTime
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:BusinessCenterTime
Containing Schema: fpml-ird-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The time of the cash settlement valuation date when the cash settlement amount will be determined according to the cash settlement method if the parties have not otherwise been able to agree the cash settlement amount.

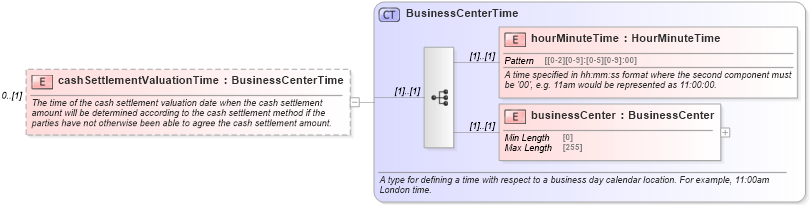

Collapse XSD Schema Diagram:
Drilldown into businessCenter in schema fpml-shared-5-10_xsd3 Drilldown into hourMinuteTime in schema fpml-shared-5-10_xsd3 Drilldown into BusinessCenterTime in schema fpml-shared-5-10_xsd3XSD Diagram of cashSettlementValuationTime in schema fpml-ird-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="cashSettlementValuationTime" type="BusinessCenterTime" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The time of the cash settlement valuation date when the cash settlement amount will be determined according to the cash settlement method if the parties have not otherwise been able to agree the cash settlement amount.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
hourMinuteTime nsD:hourMinuteTime (1) (1)
businessCenter nsD:businessCenter (1) (1)
Collapse Derivation Tree:
