Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ClassifiablePayment
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:NonNegativePayment
Containing Schema: fpml-option-shared-5-10.xsd
Abstract
Documentation:
A classified non negative payment.

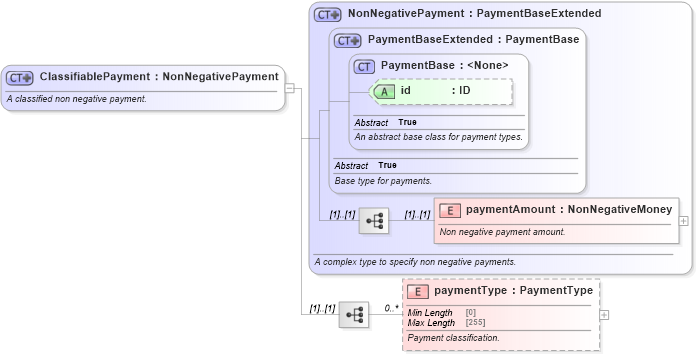

Collapse XSD Schema Diagram:
Drilldown into paymentType in schema fpml-option-shared-5-10_xsd4 Drilldown into paymentAmount in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into PaymentBase in schema fpml-shared-5-10_xsd5 Drilldown into PaymentBaseExtended in schema fpml-shared-5-10_xsd5 Drilldown into NonNegativePayment in schema fpml-shared-5-10_xsd5XSD Diagram of ClassifiablePayment in schema fpml-option-shared-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ClassifiablePayment">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A classified non negative payment.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="NonNegativePayment">
            <xsd:sequence>
                <xsd:element name="paymentType" type="PaymentType" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Payment classification.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
paymentAmount nsF:paymentAmount (1) (1)
paymentType nsF:paymentType 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:additionalPayment
