Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ClearingInstructions
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-business-events-5-10.xsd
Abstract
Collapse XSD Schema Diagram:

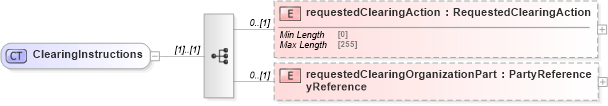

Drilldown into requestedClearingOrganizationPartyReference in schema fpml-business-events-5-10_xsd3 Drilldown into requestedClearingAction in schema fpml-business-events-5-10_xsd3XSD Diagram of ClearingInstructions in schema fpml-business-events-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ClearingInstructions">
    <xsd:sequence>
        <xsd:element name="requestedClearingAction" type="RequestedClearingAction" minOccurs="0" />
        <xsd:element name="requestedClearingOrganizationPartyReference" type="PartyReference" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
requestedClearingAction nsE:requestedClearingAction 0 (1)
requestedClearingOrganizationPartyReference nsE:requestedClearingOrganizationPartyReference 0 (1)
Collapse Derivation Tree:
Collapse References:
nsE:clearingInstructions, nsE:clearingInstructions, nsE:clearingInstructions
