Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: clearingStatusItem
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:ClearingStatusItem
Containing Schema: fpml-reporting-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Describes the status of the clearing process relating to the identified trade.

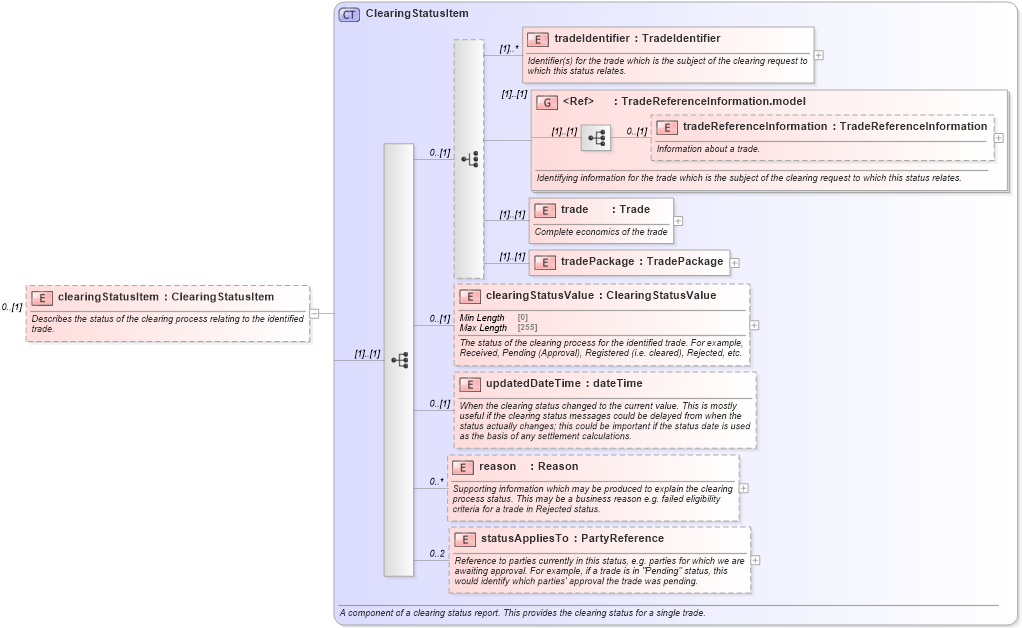

Collapse XSD Schema Diagram:
Drilldown into statusAppliesTo in schema fpml-business-events-5-10_xsd3 Drilldown into reason in schema fpml-business-events-5-10_xsd3 Drilldown into updatedDateTime in schema fpml-business-events-5-10_xsd3 Drilldown into clearingStatusValue in schema fpml-business-events-5-10_xsd3 Drilldown into tradePackage in schema fpml-business-events-5-10_xsd3 Drilldown into trade in schema fpml-business-events-5-10_xsd3 Drilldown into tradeReferenceInformation in schema fpml-business-events-5-10_xsd3 Drilldown into TradeReferenceInformation.model in schema fpml-business-events-5-10_xsd3 Drilldown into tradeIdentifier in schema fpml-business-events-5-10_xsd3 Drilldown into ClearingStatusItem in schema fpml-business-events-5-10_xsd3XSD Diagram of clearingStatusItem in schema fpml-reporting-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="clearingStatusItem" type="ClearingStatusItem" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes the status of the clearing process relating to the identified trade.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tradeIdentifier nsE:tradeIdentifier (1) unbounded
tradeReferenceInformation nsE:tradeReferenceInformation 0 (1)
trade nsE:trade (1) (1)
tradePackage nsE:tradePackage (1) (1)
clearingStatusValue nsE:clearingStatusValue 0 (1)
updatedDateTime nsE:updatedDateTime 0 (1)
reason nsE:reason 0 unbounded
statusAppliesTo nsE:statusAppliesTo 0 2
<xs:group> nsE:TradeReferenceInformation.model (1) (1)
Collapse Derivation Tree:
