Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CoalProduct
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
A type defining the characteristics of the coal being traded in a physically settled gas transaction.

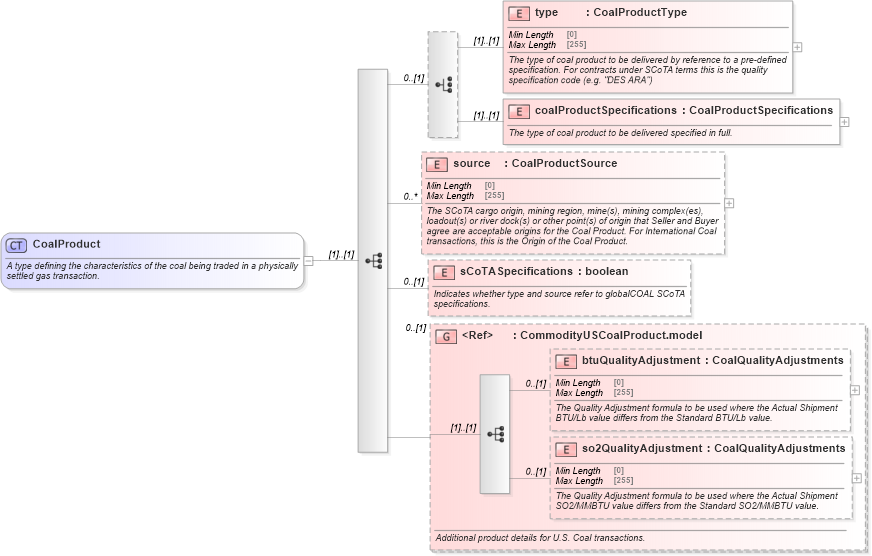

Collapse XSD Schema Diagram:
Drilldown into so2QualityAdjustment in schema fpml-com-5-10_xsd2 Drilldown into btuQualityAdjustment in schema fpml-com-5-10_xsd2 Drilldown into CommodityUSCoalProduct.model in schema fpml-com-5-10_xsd2 Drilldown into sCoTASpecifications in schema fpml-com-5-10_xsd2 Drilldown into source in schema fpml-com-5-10_xsd2 Drilldown into coalProductSpecifications in schema fpml-com-5-10_xsd2 Drilldown into type in schema fpml-com-5-10_xsd2XSD Diagram of CoalProduct in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CoalProduct">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the characteristics of the coal being traded in a physically settled gas transaction.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:choice minOccurs="0">
            <xsd:element name="type" type="CoalProductType">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The type of coal product to be delivered by reference to a pre-defined specification. For contracts under SCoTA terms this is the quality specification code (e.g. "DES ARA")</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="coalProductSpecifications" type="CoalProductSpecifications">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The type of coal product to be delivered specified in full.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="source" type="CoalProductSource" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The SCoTA cargo origin, mining region, mine(s), mining complex(es), loadout(s) or river dock(s) or other point(s) of origin that Seller and Buyer agree are acceptable origins for the Coal Product. For International Coal transactions, this is the Origin of the Coal Product.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sCoTASpecifications" type="xsd:boolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates whether type and source refer to globalCOAL SCoTA specifications.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="CommodityUSCoalProduct.model" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Additional product details for U.S. Coal transactions.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type nsE:type (1) (1)
coalProductSpecifications nsE:coalProductSpecifications (1) (1)
source nsE:source 0 unbounded
sCoTASpecifications nsE:sCoTASpecifications 0 (1)
btuQualityAdjustment nsE:btuQualityAdjustment 0 (1)
so2QualityAdjustment nsE:so2QualityAdjustment 0 (1)
<xs:group> nsE:CommodityUSCoalProduct.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsE:coal
