Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: collateralAllocation
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:ProposedCollateralAllocation
Containing Schema: fpml-confirmation-processes-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Allocation details

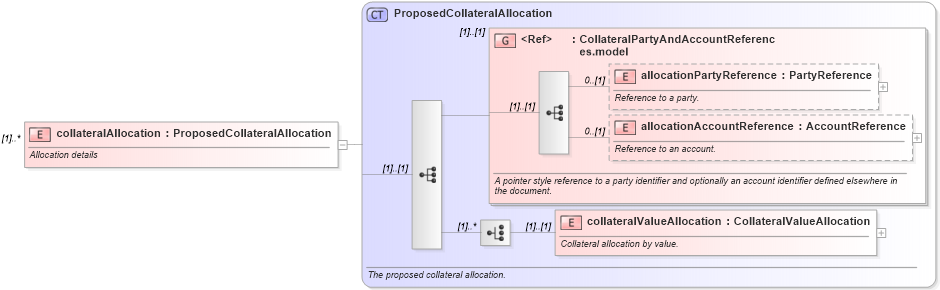

Collapse XSD Schema Diagram:
Drilldown into collateralValueAllocation in schema fpml-shared-5-10_xsd Drilldown into allocationAccountReference in schema fpml-shared-5-10_xsd Drilldown into allocationPartyReference in schema fpml-shared-5-10_xsd Drilldown into CollateralPartyAndAccountReferences.model in schema fpml-shared-5-10_xsd Drilldown into ProposedCollateralAllocation in schema fpml-shared-5-10_xsdXSD Diagram of collateralAllocation in schema fpml-confirmation-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="collateralAllocation" type="ProposedCollateralAllocation" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allocation details</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
allocationPartyReference nsA:allocationPartyReference 0 (1)
allocationAccountReference nsA:allocationAccountReference 0 (1)
collateralValueAllocation nsA:collateralValueAllocation (1) (1)
<xs:group> nsA:CollateralPartyAndAccountReferences.model (1) (1)
Collapse Derivation Tree:
